The Precitec ProCutter 2.0 App is used to visualize the state of the laser head during operation, to query error messages and to set the customer offset.
Optionally, the app can also be used to parameterize some limit values.
The app connects to the laser head via WLAN and displays the sensor values in different windows: Ambient, pressure, optics, error, IO and system.
-Ambient: Shows the sensor values for the four temperature sensors and the
humidity sensor.
-Pressure: Shows cutting gas pressure and leakage process protection glass
-Optics: Depending on the laser head type:
o Standard: focus positions, customer offset, scattered light, protective
glass contamination (upper and lower protective glass), power level (switchable for
PC 15KW)
o ZOOM: protective glass contamination (only lower), image ratio instead
of power level
-Fehler: Displays active error messages.
Empty if no error is present.
-IO: Shows the IO interface with analog voltages, currents and signals
(particularly suitable for commissioning in order to be able to view static data.)
-System:
oCutting head: Product key, serial number, firmware version, revision number
oMotor controller: firmware version and configuration
oMiscellaneous: activated modules and XML version

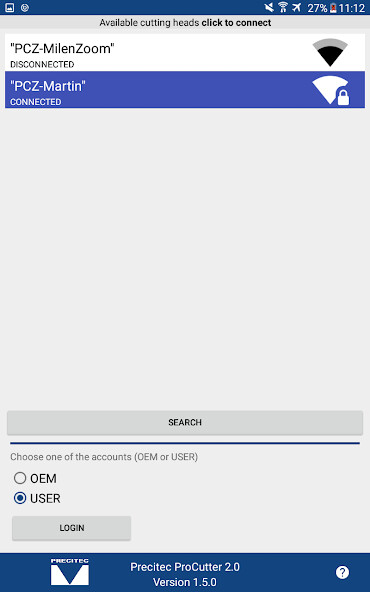

The access to the app is done in two steps.
The WLAN connection is established by means of a password (see type plate on the cutting head).
The next step is to select the access level, either USER or OEM.
An extra password is required for the OEM mode.
Depending on the access level or if the BUS connection of the cutting head is active, the rights are restricted (see table).
USEROEM active Bus
USER Limit
OEM Limit
Max.
Limits
OEM Password
Customer offset
Scattered light amplification
WLAN channel
Via the sidebar menu (right wipe or hamburger icon) additional settings and functions can be called.
-Plotter function selected sensor values can be recorded
graphically
-LogFile record: Records all sensor values and stores them in a csv file in the
memory of the device (storage location: internal memory/Precitec/).
After
finishing the recording the name of the file can be changed.
-General settings:
oChange OEM password: After changing the password, a new login needs to
be performed (only visible in OEM mode).
oChange WLAN channel: After the change, the cutting head must be restarted.
-Ambient parameters: Changing limit values for temperature and humidity
sensors.
-Pressure parameters: Changing cutting gas and leakage pressure limits
-Optical parameters:
oChange limit values of scattered light sensors.
oAdjustment of customer offset and scattered light amplification
USER - Limit values OEM - Limit values max.
Limits.
If the OEM limit values are reduced, the USER limit values are also reduced.
If the BUS connection is active, the app only serves as a display, no limit values can be changed (the customer offset is the only changeable parameter).
Changes via the BUS connection become visible after pressing the button.
