Calculate bar distance

Calculate bar distances
,
A small tool for
Locksmith and metal worker
,
With this tool, the course not
replaces the calculator is
in a simple and clear
Thus, the calculation of
Staff calculated distances and
displayed.
,
,
!! Please read before using !!
,
There is no liability for
Damage taken.
,
The existing rules such as the
DIN 18065 metal stairs, handrails, handrail
must be considered of course.
,
,
The function:
,

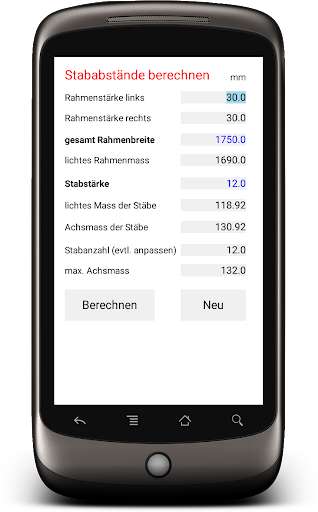

This app calculates the
clearance and
the axle dimensions of rods
in one example, Balustrade part.
,
,
Thus, the calculation makes sense
should at least 2 values
be entered:
,
- The total frame width
- The bar thickness
,
(The frame width is then
the clear frame dimensions)
,
After entering these values can
with the 'Calculate' button to
Calculation be performed.
,
Thereafter, the number of bars
be changed.
z.
B.
If a center rod GE
wishes is.
(click again calculating)
,
It should be noted.
,
If one or more values
have been changed, must
the number of bars to zero
are placed so that
the calculation is correct again.
(It was the, it's so
willed)
,

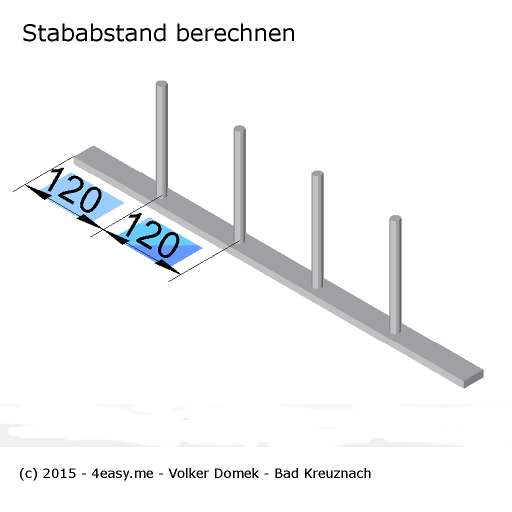

Specificity of the dimension between axes
(for amateurs)
,
The axial dimension is the distance
of rod center to rod center.
In a frame field must,
so that the calculation is correct,
each half of the rod
left and right in the frame
be included.
,
with the 'New' button is everything
reset to the initial values.
,
The decimal separator is
the point.
,
*******************************************
,
App created by: (c) 2015 - Volker Domek - 4easy.me - Bad Kreuznach
,
*******************************************
