We provide PT100 Converter online (apkid: com.osmm.pt100) in order to run this application in our online Android emulator.
Description:
Run this app named PT100 Converter using MyAndroid.
You can do it using our Android online emulator.

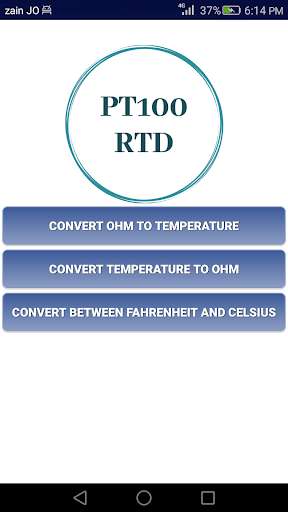

The PT100 Converter will Convert your RTD Resistance Reading to Temperature and Vice versa.
- Conversion Between Celsius and Fahrenheit is Included.
- Upon Each Conversion, You Can See The Nearest Values Too.
- RTD are Normalized in Most Industrial Countries, According to IEC751/ITS-90, The Temperature/Resistance Relationship used in This Standard are:
For the range -200 C to 0 C:
Rt = R0 [1 + At + Bt2 + C(t 100 C) t3]
For the range 0 C to 850 C:
Rt = R0 [1 + At + Bt2)
Where:
A = 3.9083 x 10-3 C -1
B = -5.775 x 10-7 C -2
C = -4.183 x 10-12 C -4
- The PT100 Converter Will Use The Above Equations To Find Out The Required Resistance and Temperature, Same Method Are Used To Generate the OHM/Temperature Tables.
- Based on Above, The PT100 App is Made, Easy and Quick Use To Find Temperature and Resistance, As Well I do Not Hold Any Liability For Any Error or Problem That Could Be Appear Due to Uses Of This App.
- Conversion Between Celsius and Fahrenheit is Included.
- Upon Each Conversion, You Can See The Nearest Values Too.
- RTD are Normalized in Most Industrial Countries, According to IEC751/ITS-90, The Temperature/Resistance Relationship used in This Standard are:
For the range -200 C to 0 C:
Rt = R0 [1 + At + Bt2 + C(t 100 C) t3]
For the range 0 C to 850 C:
Rt = R0 [1 + At + Bt2)
Where:
A = 3.9083 x 10-3 C -1
B = -5.775 x 10-7 C -2
C = -4.183 x 10-12 C -4
- The PT100 Converter Will Use The Above Equations To Find Out The Required Resistance and Temperature, Same Method Are Used To Generate the OHM/Temperature Tables.
- Based on Above, The PT100 App is Made, Easy and Quick Use To Find Temperature and Resistance, As Well I do Not Hold Any Liability For Any Error or Problem That Could Be Appear Due to Uses Of This App.
