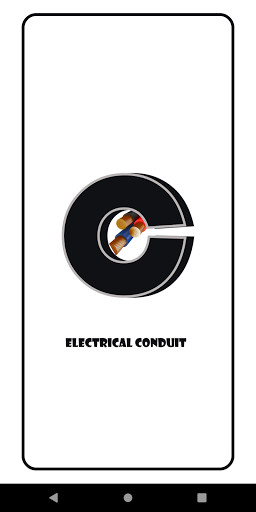

Wires & Cables Electrical Conduit Fill Calculator

Free App!!
-Wires & Cables Electrical Conduit Fill Calculator is a simple application capable to identify the suitable conduit containment size which can accommodate the selectable standard and filling the overall diameter for non-standard copper and aluminum wires & cables with entering their quantities, the resulting conduit size capable to accommodate total cross-sectional area of all cables/wires by specifying the run distance between two pulling boxes , weather the run is straight or has one or two bends along the way , the resulting conduit size is with sufficient space for ease pulling as per IEE wiring regulation BS 7671 , UAE RSB & most of all electricity supply authorities.
- In Wires & Cables Electrical Conduit Fill Calculator in order to get the maximum conduit sizes as per Abu Dhabi RSB regulation, user can select RSB Conduit Sizes in menu located on top right there has only to choose the wire size.
- Wires & Cables Electrical Conduit Fill Calculator contains two tables the first table is for standard wires, for non-standard wire's size user can use the second table under title Others, first table is for selectable standard BS single wires describing their sizes in mm2, and the other table to enable the user to get the conduit size through providing the wires/cables overall diameter in (mm) then filling the QTY.
- Wires & Cables Electrical Conduit Fill Calculator calculates the suitable conduit size for individual wire or group of selected, or filling Dia (Cable's overall diameters) and quantities of wires & cables.
-.
Wires and Cables Electrical Conduit Sizer is in metric unit system.
For any clarification, please don't hesitate to contact me through my email ID : [email protected]
