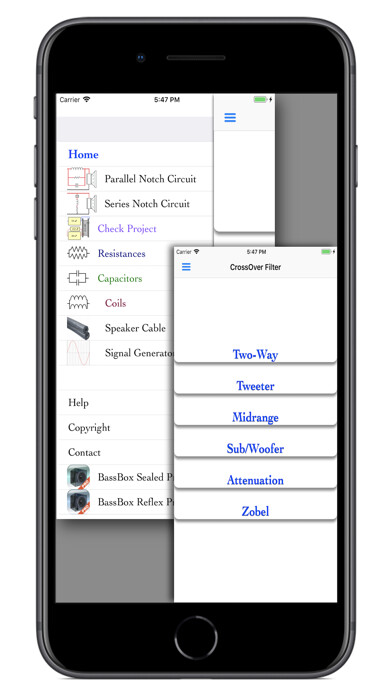

CrossOver Filter

Designs and simulates the Crossover Filter of your car stereo system or home in a simple and professional way at the same time.

Features and Functions:

Crossover Filter Calculation for Two-Way 6 / 12 / 18 and 24dB / octave.

Crossover Filter Calculation for Tweeter to 6 / 12 / 18 and 24dB / octave.

Crossover Filter Calculation for Mid-range to 6 / 12 and 18dB / octave.

Crossover Filter Calculation for Subwoofer / Woofer to 6 / 12 / 18 and 24dB / octave.

Ability to select the Q factor of Merit in Two-Way, Tweeter and Subwoofer / Woofer (Butterworth, Bessel, Chebyshev, Linkwitz-Riley and Linear Phase).

Zobel Circuit Calculation.

Speaker Attenuation Calculation.

Check Projects of filters already existing.

Notch Circuit Parallel Calculation.

Notch Circuit Series Calculation.

Calculating Resistances, Coils and Capacitors in series or parallel connections.

Calculation Speaker Cable Attenuation and Cable Resistance with selection of metal cable (Copper, OFC Copper, LC-OFC Copper, Tin-Plated Copper, Nichel-Plated Copper, Silver and Aluminium).

Conversion table for AWG / mm / mm2.

Signal Generator, slide to select the Frequency from 20Hz to 20KHz, Sweep Up and Sweep Down to 20Hz/20KHz, Ascending tones, Descending tones, Pink Noise and White Noise.

Assembly diagram of Crossover.

Generates PDF files or image files to share or save your project.

Sharing of projects through Mail, iMessage and Social networks.

Saving of project in Photo, iBooks, Note, Dropbox, Google Drive, Evernote, etc.

Printing of project.,
