iPhone app RS-MS1I

Functional overview of the application

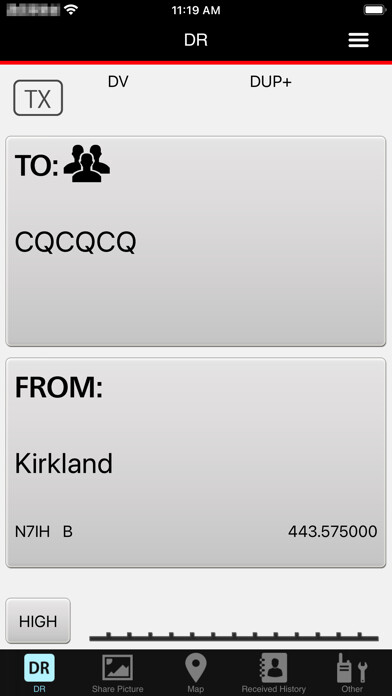

DR functions

You can use some transceivers DR functions.

Share pictures

Send and receive voice and pictures.

Map

See the location of repeater sites or other stations on a map using received position data, or your transceivers repeater list.

Automatically set the transceivers FROM and TO fields by tapping a repeater site or a station on the map.

Receive History

In the DV mode, read and edit the received stations information.

Download additional information from an Internet database, such as QRZ.com or APRS.fi.

Text messaging

Send and receive text messages.

Call Sign list

Edit call signs and names used in the DR function.
Also, you can add a call sign and a name in the Call Sign list.

Repeater list

See the detailed data entered in the Repeater list.

Transceiver settings

Change some of the transceivers function settings.

Application settings

Select application software settings.

Import

Import a Repeater list or a Call Sign list.

Export

Export a Repeater list, a Call Sign list, or Receive History.

See the transceivers instruction manual for details.
The instruction manual can be downloaded from the ICOM web site.

Device requirements

The RS-MS1I operating requirements are as follows:

iOS12 or later

Usable transceivers (As of Mar 2022)

- ID-4100A/E + Bluetooth unit (UT-137)

- ID-52 *1

- IC-705 *2

*1 Supported in RS-MS1I Ver.1.1.0 or later.

*2 Supported in RS-MS1I Ver.1.2.0 or later.

Preparation

To use the RS-MS1I with a supported transceiver, you need an optional Bluetooth unit.
See your transceivers instruction manual for details.

Transceivers settings

Set the following functions as shown below to use the RS-MS1I.

[Function] > [CI-V] > [CI-V Transceive]: ON

[Bluetooth Set] > [Data Device Set] > [Serial Port Function]: CI-V (Echo back OFF)

Note:

- The RS-MS1I may not work with all iPhones or iPads, even if they are one of the tested devices.
This is because an application program on your device may conflict with the RS-MS1I.

- The RS-MS1I may not be used, depending on the OS version, installed application, and so on.

- Bluetooth LE is used for the connection with the transceiver, so there may be a time delay between the transceivers operation and the display on the iPhone or iPad.

- When sending or receiving pictures using FAST mode, the headset audio will be temporarily interrupted because of the transceivers Bluetooth unit limitations.

- You may need to connect to the Internet through a Wireless LAN, a 3G network or an LTE network for some functions.

- The RS-MS1I supports only portrait orientation with the iPhone.
It does not support Auto Rotate.
However, landscape orientation and Auto Rotate are supported with the iPad.,
