Physics Toolbox Sensor Suite

This app uses internal smartphone sensors to collect, display, record, and export .csv data files.
See www.vieyrasoftware.net to (1) read about case usage in research and development, and (2) get lesson plans for educators of science, technology, engineering, and mathematics (STEM) fields, including physics.
Sensor availability, precision, and accuracy are dependent upon smartphone hardware.

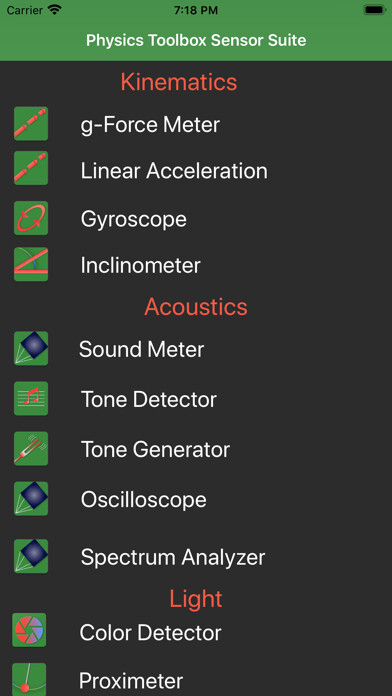

Sensors, generators, and data analysis tools include the following:

KINEMATICS

G-Force Meter - ratio of Fn/Fg (x, y, z and/or total)

Linear Accelerometer acceleration (x, y, and/or z)

Gyroscope - radial velocity (x, y, and/or z)

Inclinometer - azimuth, roll, pitch

Motion Visualizer - position and velocity calculated via LIDAR

ACOUSTICS

Sound Meter - sound intensity

Tone Detector - frequency and musical tone

Tone Generator sound frequency producer

Oscilloscope - wave shape and relative amplitude

Spectrum Analyzer - graphical FFT

LIGHT

Color Detector - detects HEX colors within a small rectangle area on the screen via the camera.

Color Generator R/G/B/Y/C/M, white, and custom color screen

Proximeter - periodic motion and timer (timer and pendulum modes)

MAGNETISM

Compass - magnetic field direction

Magnetometer - magnetic field intensity (x, y, z and/or total)

Magna-AR - augmented reality visualization of magnetic field vectors

OTHER

Barometer - atmospheric pressure

GPS - latitude, longitude, altitude, speed, direction, number of satellites

COMBINATION

Multi Record - choose one or more of the above sensors to collect data at the same time.,
