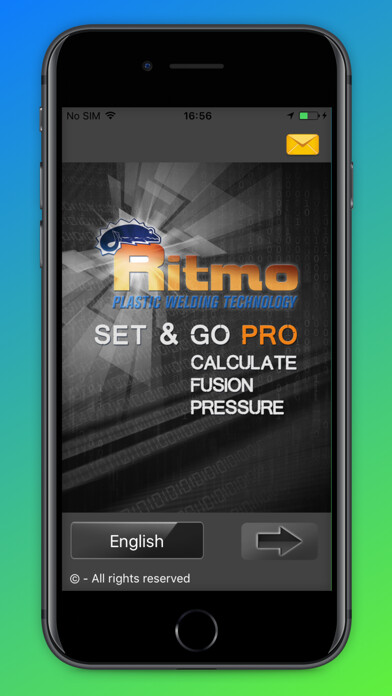

iPhone app SET & GO PRO

SET & GO PRO app developed by RITMO S.p.A.
for its butt welders.

SET & GO PRO calculates the butt welding parameters in a simple, fast and useful way.

With easy guided steps, how to select the welding machine, set the characteristics of the pipe, choose the welding standard etc, SET & GO PRO immediately tells you how to weld!

The entire work cycle is then assisted and guided step by step also by a functional timer with countdown timer.

`SET & GO PRO .
its already the future!` +

Languages: English, Spanish, Italian, French, Polish, Romanian, Deutsch, Portuguese.

Tutorial page: with tutorial How to use this app and with instructional videos for the BASIC LINE and the EASY LIFE WELDING SYSTEM.

Choice of welding machine: from list of Ritmo butt fusion hydraulic machines or free insertion of the thrust section of the cylinders (cm2, in2).

Choice of welding standard: ISO 21307 SLP / DLP / SHP, UNI 10520 SINGLE / DUAL, DVS 2207-1, DVS 2207-11, ASTM F2620-20, ASTM F3372-20, WIS 4-32-08, NS 416-2, INSTA 2072-2, ES.
0207.GN-DG, NBN T 42-010 Methods A/B, NEN 7200 or free entry of interface pressure (MPa, bar, psi).

Choice of tube diameter from list or free insertion (mm, in, IPS, DIPS).

SDR choice or free insertion of the thickness (mm, in).

Material choice (PE, PE80, PE100, PE100RC, PEHD, PP, PA12).

Insertion of drag pressure (bar, psi).

Insertion of room temperature ( C, F) in the standards where required.

Presentation of welding parameters ( C / bar or F / psi).

Creation of welding parameter tables in pdf format

Calculation of welding parameters and timer function for each phase of the welding cycle with acoustic signal in the last 10 seconds of each phase.

Choose SET & GO PRO because safety and quality are part of your job!,
