E145 Virtual Panel

The E145 Virtual Panel APP provides pilots with a self-study tool in order to prepare them for their initial or recurrent E145 training.
The E145 Virtual Panel APP helps pilots to become familiar with the panel functionality, thus reducing study time preparations.

145 Virtual Panel APP Includes:

900 Fully Functionality Buttons with Explanations - Images - References.
(More added)

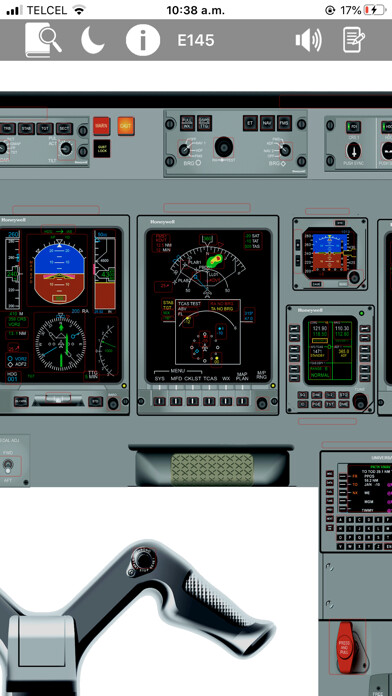

Pan and Zoom capabilities.

E145 Detailed buttons explanations

E145 Limitations (Fast Search)

E145 Definitions (Fast Search)

E145 EICAS Messages List (Fast Search)

FAA Abbreviations (Fast Search)

Jeppesen Abbreviations (Fast Search)

Glossary of aviation terms (Fast Search)

High fidelity Images

- Save your notes and keep them even when your device is off.

- Dark mode enabled.

Version 1.1 now includes more than 80 interactive images within the E145 panel.
The following virtual interactive panels are included:

ELECTRICAL SYNOPTIC

HYDRAULIC SYNOPTIC

ECS SYNOPTIC

CONTROLS SYNOPTIC

FUEL SYNOPTIC

TCAS

EGPWS

HSI MODES

HSI WEATHER RADAR INDICATIONS

MFD WX RADAR

AIRSPEED TAPE INDICATIONS

VERTICAL SPEED INDICATIONS

AHRS FAIL ANNUNCIATIONS

AILERON SCHEMATIC

LANDING GEAR

AIR CONDITIONING

ELECTRONIC ATTITUDE INDICATOR

BAGGAGE DETECTION/EXTINGUISHING

TUNING BACKUP CONTROL

DIGITAL CHRONOMETER

ENGINE FUEL SCHEMATIC

POWERPLANT SCHEMATIC

MASK STOWAGE BOX

ALTITUDE TAPE INDICATIONS

ADI INDICATIONS

OXYGEN MASK FUNCTIONS

PFD ANNUNCIATIONS

PFD MISCOMPARES

EGPWS DISPLAY ON PFD

ADI TAKE OFF

TCAS INDICATION ON PFD

WINDSHEAR INDICATION ON PFD

HORIZONTAL PROFILE INDICATIONS

FULL EICAS FUNCTIONS

THRUST LEVER BUTTONS

DVDR

FLIGHT ATTENDANT

Note: The aircraft manufacturer offers slightly different cockpit configurations.
The panel, buttons, and switches represent a specific configuration.

This APP contains all the information for the E145.,
