testo Smart

- All in one: The testo Smart App guides you easily and quickly through measurements on refrigeration, air conditioning and heating systems, air flow, and many more applications.

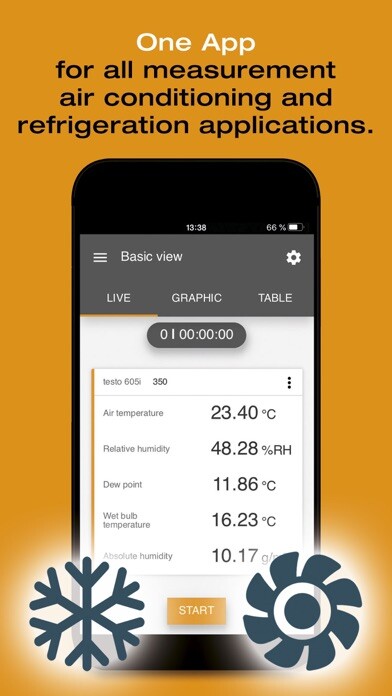

- Fast: Graphically descriptive display of measured values, e.g.
as a table, for quick interpretation of results.

- Efficient: Create digital measurement reports including.
photos as PDF/ CSV files on site and send them via e-mail.

The testo Smart App is compatible with the following Bluetooth-enabled measuring instruments from Testo:

- All Testo Smart Probes

- Digital manifolds testo 550s/557s/550i and testo 550/557

- Digital refrigerant scale testo 560i

- Flue gas analyzer testo 300

- Vacuum gauge testo 552

- Clamp meter testo 770-3

- Volume flow hood testo 420

Applications with the testo Smart App

Refrigeration systems, air conditioning systems and heat pumps, heating systems, indoor air quality:

- Leak test: Recording and analysis of the pressure drop curve.

- Superheat and subcooling: Automatic determination of condensation and evaporation temperature and calculation of superheat / subcooling.

- Target superheat: Automatic calculation of target superheat

- Automatic refrigerant charging by weight, by superheat, by subcooling, and by target superheat

- Vacuum measurement: Graphical progress display of the measurement with indication of start and differential value

Indoor air quality and comfort level:

- Temperature and humidity: Automatic calculation of dew point and wet bulb temperature

Ventilation systems:

- Volume flow: After the intuitive input of the duct cross-section, the app calculates the volume flow fully automatically.

- Diffuser measurements: simple parameterisation of the diffuser (dimensions and geometry), comparison of the volume flows of several diffusers when setting up a ventilation system, continuous and multi-point average calculation.

Heating systems:

- Flue gas measurement: Second screen function in combination with testo 300

- Measurement of gas flow and static gas pressure: Also possible parallel to the flue gas measurement (delta P)

- Measurement of flow and return temperatures (delta T),
