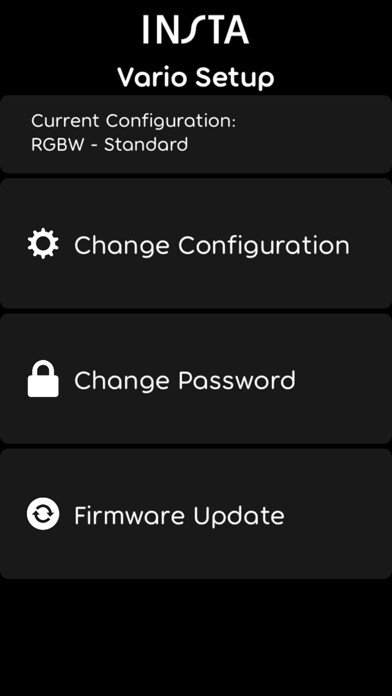

Vario Setup

Intuitive commissioning App for the modular lighting control device instalight Vario.

Program a complete lighting application within only three steps and afford your customer a comfortable operation via the App Vario as well as via optional connected push-buttons:

1.
Choose a colour mode: RGB, RGBW, Tunable White, Unicolor (or combinations)

2.
Choose an operation profile for the assignment of push-buttons

3.
Choose your customers favourites from a set of professionally pre-programmed light sequences, and provide them with the pre-defined touch operating areas.

Main features:

- Control of luminaires via protocol USITT DMX512-A

(512 channels RGB, RGBW or TW with 40 frames/s)

- Dimming of luminaires with DALI

(up to 2x64 devices via 2x DALI dt6 broadcast)

- Control of Tunable White with DALI

(up to 2x64 devices via 2x DALI dt8 Tunable White

or up to 2x32 devices via 2x DALI dt6 addressed)

- Control of luminaires via protocol LEDTRIX

(LED linear and plane systems with 2x60 channels RGB, RGBW or TW)

- Control of LED applications via universal PWM interface

(4 PWM channels with up to 90 W each)

- Integration of up to eight push-buttons via optional binary module inside of the control device

- Communication with the control device via WiFi or LAN

- Combination of DMX or LEDTRIX with DALI or PWM offers control of ambient- and general lighting

- Locking the App using password access

Additional note:

- Requires control device instalight Vario (see www.insta.de/vario)

- Operation of the control device via separate App Vario (free),
