Hydraulic schemes

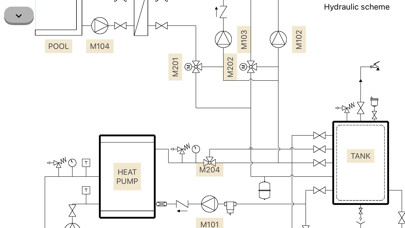

This tool will allow you to create your own hydraulic scheme (heat, cold, air conditioning) quickly and easily, you simply have to select the symbol you want to use, drag and drop it in the desired position.

Symbols:

Valves: 2, 3 and 4-way, mixing, control, balancing, butterfly, gate, safety, overflow, non-return, thermostatic, pump, flowmeter, meter, flow switch, pressure gauge, air and dirty separator, drain, temperature probe, boiler, heat pump, indoor and outdoor unit, accumulator, inter-accumulator, heat and cold exchanger, collector, thermostat, radiator, underfloor heating, pressure reducer, filter, resistor, sleeve, tap, buffer tank, gas, solar panels, coil, oven, swimming pool, emitters.

-------------

* More examples: https: //drive.google.com/drive/folders/1W6HFnDNsZAZonUlPn5tEPEnbZOuACjxN?usp=sharing,
