LiNA Touch

LiNA Touch the user / operating APP for the Blu2Light System.

With LiNA Touch you can operate any Blu2Light System with your iPhone or iPAD.

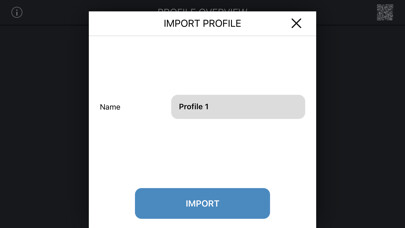

Please note: to create a LiNA Touch user profile the LiNA Connect is required.

BLU2LIGHT FUNCTIONS

Up to 64 DALI devices per Blu2Light DALI controller.

Up to 16 functional groups per Blu2Light DALI controller.

Up to 64 light scenes per Blu2Light DALI controller.

Up to 64 sequences per Blu2Light DALI controller.

Up to 250 events can be configured per Blu2Light DALI controller.

Daylight and motion detection integrated (only devices with sensors).

Super-high performance wireless mesh system.

Colour control and dimming for all common standards already integrated.

Security functions to protect the system.

Blu2Light Bluetooth system AT A GLANCE

Open standard means that the technology is accessible for all market partners for further development and use.

Needs no additional router.

Improved network security ensures optimum protection against illegal access both prior to and during luminaire use (luminaire hijacking).

The 4-step security concept:

I individual user and administrator passwords for the app and cloud services

unique product reference code in the form of a QR code

encrypted mesh connections (128 bit/AES)

Encrypted Bluetooth wireless technology communication

(128 bit/AES).

Immediate compatibility with every Bluetooth wireless technology

module with a Nordic nRF52 chipset (currently based on BT 4.2).

Adaptations to other manufacturers are possible.

Self-healing, high-performance mesh network thanks to using all 40 Bluetooth wireless technology channels for data transfer and distribution.

An event-based operating system that lets you define 250 incoming and outgoing events (switching, dimming, colour, timer, and much more) per Bluetooth device.

All Blu2Light components can function as a standalone system,

can form a Bluetooth wireless technology mesh network with

several hundred devices and be integrated into building

management systems via the IoT structure.

The entire system is controlled and commissioned via the

LiNA Connect APP (for configuration) and LiNA Touch (for operation).

When combining Blu2Light components with drivers featuring

already integrated Active DALI technology (e.g.
VS B2L ready

DALI LED driver) no additional power supply is required for the sensor.

Blu2Light devices fitted with a DALI bus can be combined with

any DALI driver via the DALI standard.

Integration of EnOcean switches/keys with Bluetooth wireless

technology is possible (PTM 215B).

OTA update of the system possible (Bluetooth wireless technology

mesh and operating system)

For more information please visit:

www.blu2light.de,
