iPhone app LeafSpy Pro

The Leaf Spy Pro application allows anyone with a Nissan Leaf electric vehicle, an iOS 7.1+ device and the LELink Bluetooth 4.x LE OBDII adapter (recommended) or a WiFi OBDII adapter the ability to monitor their battery and other vehicle information normally visible only to the dealer.
Support for English and Japanese language.

Note: The iPhone 4 and early iPads (2nd Gen) do NOT support Bluetooth 4.0 LE.

Supports new 2018 Leaf

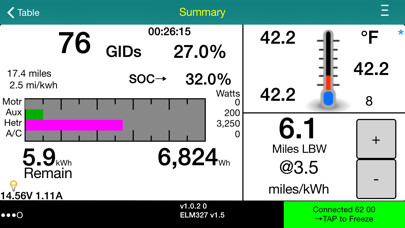

Information displayed by Leaf Spy Pro:

* Voltage of each of the 96 cell pairs (highlighted if shunt active)

* Minimum, average, maximum cell pair voltages

* Histogram of cell pair voltages

* Battery Temperature readings (4 sensors for 2011/12 models, 3 for 2013 models)

* Battery AHr rating (this will decease with age and is an indication of remaining capacity)

* VIN

* Odometer (miles or km)

* Number of Quick Charge connections

* Number of L1/L2 Charge connections

* EVSE Max available amps

* EVSE voltage

* Battery energy level in GIDs & kWh

* Resetable energy usage meter (Wh resolution)

* Graphic display of SOC, GIDs and DTE (Distance to Empty)

* Remaining distance meter (miles/km) to Event (Low Battery Warning, Very Low Battery Warning or Reserve) based on user selectable energy efficiency

* Graphic display of battery temperature with min, avg, max temperatures

* Tire Pressure of each of the four tires with low pressure warning and delta pressure warning alarm (not yet supported on 2018 Leaf)

* Ambient Temperature

* Displays climate control settings and power used.

* Trip and Charge Log

* Logging function that records most data and optionally GPS location to a csv file that can be easily imported into excel.

* Dropbox support to sync Log files

* Can run in background while connected to Leaf

LeafSpy Pro also gives you the ability to perform functions normally requiring a visit to the dealer.

* Change automatic door lock/unlock settings

* Change VSP sound settings on 2013 and newer Leafs

* Read Diagnostic Trouble Codes (DTC)

* Register Tire Positions (required after tire rotation or seasonal tire changes so your Leaf knows the correct location of each tire on the car)

* Ability to reset DTCs from selected ECUs

When using run in background mode where you enable GPS to run continuously.
Please note the following:

Continued use of GPS running in the background can dramatically decrease battery life.,
