VUER - Live Video Monitor

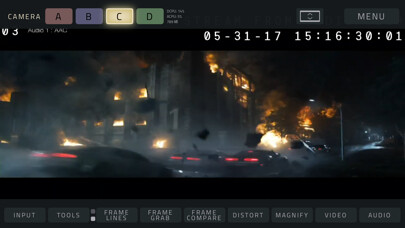

VUER is an iOS application that allows you to monitor and analyze up to 4 Teradek encoder Video feeds in real-time, all in 1080p HD.
With a built-in histogram, false color, focus peaking, waveform monitor and vectorscope, digging into the details of your Video streams has never been easier.

TOOL BUTTONS PAGE 1:

HISTOGRAM -Adjust display mode (fullscreen, overlay, top and bottom), type of chart (luminance, RGB Parade, RGB Overlay), Opacity, Position and Size

WAVEFORMAdjust display mode (fullscreen, overlay, top and bottom), type of chart (luminance, RGB Parade, RGB Overlay), Intensity, Opacity, Position and Size

VECTORSCOPEAdjust display mode (fullscreen, overlay, top and bottom), type of chart (Cr/Cb or H/S), Intensity, Opacity, Overlay Position, and Overlay Size

FALSE COLOR Select a Full-range IRE Guide or a Discrete guide (similar to ARRI or RED camera false color guides), enable IRE Guide overlay for reference on-screen

PEAKINGadjust peaking threshold

FOCUS ASSISTfocus assist color and intensity

TOOLS BUTTONS PAGE 2:

FRAMELINESAdjust 2 sets of preset or custom aspect ratio created with a simple function (x: x), Frameline Color, Center mark, Surround Mask opacity, and Safe Zone %

FRAME GRABNaming Prefix, File naming (name each grab manually or use prefix setting, Manage grabs (Shortcut to framegrab manager thumbnail library)

FRAME COMPAREOverlay Image selection, Blend Mode selection ( interpolate, difference, screen, exclusion and geometric), Alpha % blend slider

DISTORTselect Anamorphic Desqueeze aspect ratio (1: 1, 1.33: 1, 1.5: 1, 1.78: 1, 2: 1 or Custom), Flip and / or Mirror function

MAGNIFYMagnifier Size (Small, Medium or Large), Magnifier Outline Color ( white, red, blue, yellow, green or no outline),
