S-VMX Client Mobile

Teleste S-VMX Video management system provides a scalable endtoend solution covering all major features needed in a modern management system.

S-VMX Mobile Client is a mobile operator interface into the Teleste Video Management System.
The interactive graphical user interface allows the operator to control and manage cameras and recordings directly from the mobile device.
The resolution of the connecting device is automatically detected in order to provide simplified mobile phone specific interface (lower resolution) or tablet specific interface (higher resolution).

The following main functionalities are provided to the mobile device:

User authorization only authorized users can access the system and utilize its resources according to their access rights

Browsing through system structure (geographical groups) to access cameras

Access to live Video streams (quad Video display for tablet mode)

Access to recorded Video

PTZ camera control

Video playback control

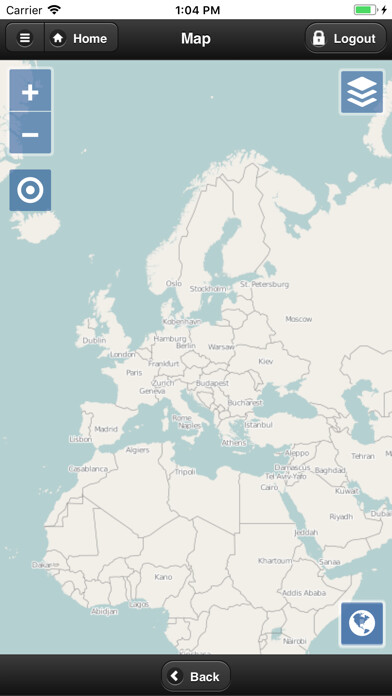

GIS Map view

Location of cameras on maps

Live Video from cameras on maps

Status of a camera placed on the map

Supported softwareS-VMX 3.0 and above

Installation

The application is available in the Apple App store.
After installation it can be accessed from the S-VMX icon on the device.
When the application is started for the first time, connection parameters to S-VMX server need to be configured:

Label your own custom name for the system

S-VMX server URL IP address or domain name of your S-VMX server

After the parameters have been entered and confirmed the application will save and display the system entry that you can select to login and use.
For further information see S-VMX Client User manual.

Settings

Data structure for Defaults: {NAME: URL}

(example: {EXAMPLE: http: //example.url}),
