iPhone app Radar Analysis Toolbox

The Radar Analysis Toolbox is a collection of valuable equations handy for the RF engineer in the field.
The user can input values for each variable, press solve the equation, and plot these equations all from the palm of their hand.
No more gathering data and then running back to the office to solve quick calculations.
The Radar Analysis Toolbox quickly plots and solves single or swept values, providing performance estimates to keep your technical discussions moving and validating those complicated signal to noise ratios.

With over 60 interactive equations to select from, we hope you find the application as useful as we do! And we look forward to your comments and suggestions.

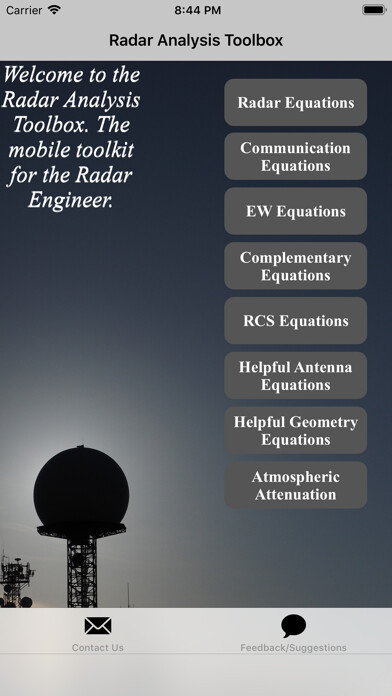

Categories and equations included are:

Radar Equations

Single Value Analysis

- Received Power - Monostatic

- Received Power - Bistatic

- Signal-to-Noise Ratio [SNR]

- Maximum Detection Range

Swept Value Analysis

- Received Power - Monostatic

- Received Power - Bistatic

- Signal-to-Noise Ratio [SNR]

- Maximum Detection Range

Distributed Coherent Radar Single Value

- Received Power - Monostatic

- Received Power - Bistatic

- Signal-to-Noise Ratio [SNR]

- Maximum Detection Range

Communication Equations

Single Value Analysis

- Energy Per Symbol - to - Noise Power Spectral Density Ratio [Eb/No]

- Carrier - to - Noise Ratio [C/N]

- Carrier - to - Noise Density Ration [C/No]

- Energy Per bit - to - Noise power Spectral Density Ratio [Eb/No]

EW Equations

Single Value Analysis

- [J/S]: Stand-in Jammer Monostatic Radar

- [J/S]: Stand-in Jammer Bistatic Radar

- [J/S]: Stand-off/in Jammer Main Lobe Injection

- [J/S]: Stand-off/in Jammer Side Lobe Injection

Complementary Equations

- Time-Bandwidth Product

- Range Resolution - Pulse Width

- Range Resolution - Bandwidth

- Duty Cycle

- Power Density

- Electric Field Intensity

- Maximum Unambiguous Doppler Velocity

- Doppler Frequency

- Maximum Unambiguous Range

- Maximum Unambiguous Range & Doppler Velocity - Frequency Dependence

- Effective Isotropic Radiated Power ]EIRP]

- dB Conversions

- Friis Equation

- Noise Power and Density

- Shannon - Hartley Limit

RCS Equations

- Sphere

- Rectangular Flat Plate

- Dihedral

- Trihedral - Triangular Plate

- Trihedral - Square Plate

- Trihedral - Curved Plate

- Cylinder

- Circular Flat Plate

- Finite Cone

- Semi-Infinite Cone

- Ogive

- Paraboloid

Helpful Antenna Equations

- Far Field Distance

- Reactive Near Field Distance

- Parabolic Reflector Gain

- Parabolic Antenna Beamwidth Estimate

- Antenna Downtilt Ground Coverage

- Half Wavelength Dipole Calculator

- Monopole Length Calculator

Helpful Geometry Equations

- Hypotenuse

- Chord Length

- SOH

- CAH

- TOA

Atmospheric Attenuation

- Attenuation due to water and oxygen

- Attenuation due to combined water and oxygen

- Calculate Atmospheric Losses,
