iPhone app Max Zs Values download it using MyAndroid.

Calculate and look up the maximum permitted Zs value ( earth loop impedance ) to BS 7671.
Max Zs Values also includes the 80% temperature adjusted values and a some MCCB 60947-2 manufacture Zs charts.

- 100% BS 7671 Zs Values

- 80% On Site Guide Zs Values

- Printable 60947-2 MCCB Zs Tables

- 0.4 (s) second disconnection times

- 0.2 (s) second disconnection times

- 5 (s) second disconnection times

> Common BS EN Devices:

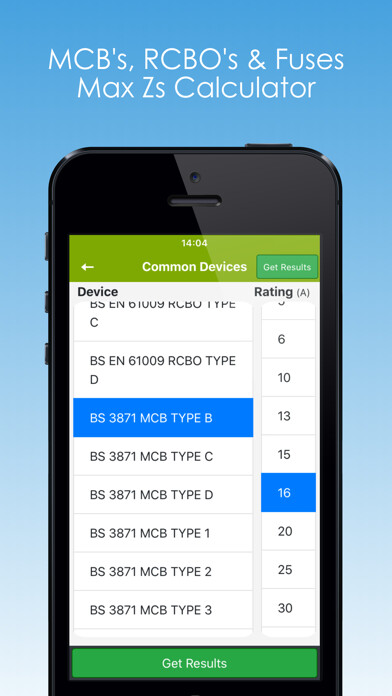

Scroll through the list of protective devices and select the device rating to calculate the maximum permitted Zs value for your selected protective device and rating combination.

> 60947-2 MCCBs Zs Tables:

Look up the maximum permitted Zs tables for a selection of MCCB manufacture devices (some).

Maximum Zs Features:

+ Maximum Disconnection Times

+ BS 7671 18th Edition Zs Tables

+ Fuses

+ MCBs

+ RCBOs

+ RCDs in TT earthing systems

+ Max REC Ze values

+ 100% values

+ 80% values

+ 0.4 second disconnection times

+ 0.2 second disconnection times

+ 5 second disconnection times

+ Uo 55v (U 110v) single phase and Uo 63.5v (three

phase) Zs values

+ BS EN 60947-2 MCCB manufacture device charts

(some)

There is now a new Zs Converter to convert old Zs values to the new 18th edition 230v Cmin Zs values.

A maximum Zs calculator for iPhone and iPad.

Check out our collection of electrical apps such as the Pro Certs Electrical Certification App for iPad.,
