SoundMaster SLM

Overview

- SoundMaster aims at delivering the most robust sound level measurement readings on the App Store

- Audio data is captured directly from input buffers, ensuring a robust and responsive measurement output

- Features state-of-the-art algorithmic implementations, ensuring high-accuracy readings

- UI is polished to perfection, delivering professional-grade user experience

- Comes pre-calibrated using reference equipment

Main Features

- Professional sound level measurement capabilities

- Advanced calibration and equalization support

- Extended measurements management

Under the hood

- 44.1kHz/32bit raw audio recording

- 20Hz to 20kHz frequency response

- 90dB dynamic range, from 25dB to 115dB SPL[A]

- 1.4dB accuracy @25dB-115dB SPL[A]

- Low latency and processing-loss spectral analyzer

- Audio I/O latencies monitoring and compensation

Noise Measurements

- Digital VU and numeric visualizations

- Broadband RMS, Peak, Max, Min, Leq and measurement duration data handling

- Impulsive, Fast and Slow response modes

- A, B, C, D, Z weighting filters

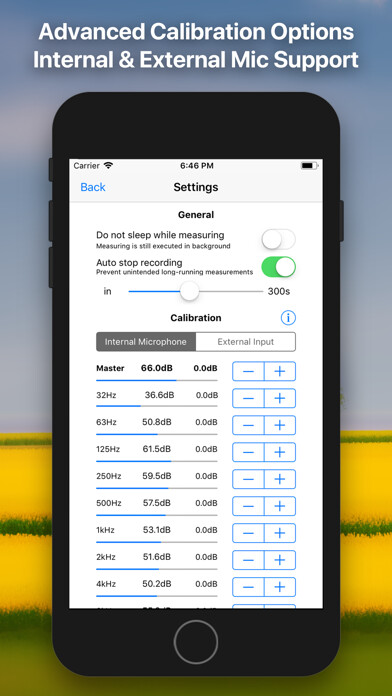

Advanced Calibration

- Calibrated and equalized for all iPhone models

- Calibrated for the MicW i436, as an external input source

- Calibration data is OTA (Over the Air) updated

- Additional user calibration and equalization banks for both embedded microphone and external input source

- Custom octave-based gain adjustment support

Session Management

- Frame-based time-series of measurement data handling

- Overall statistics calculation for noise measurements

- Photo capture capability

- Time and geolocation awareness support

- Title, location and comments metadata support

- Audio recording (CAF format), measurement data (CSV format) and metadata export capabilities

Additional Capabilities

- Option for keeping the device awake during recording

- Option for auto-stopping measurements after a pre-configured duration

- Background recording capability

- Upside down orientation support,
