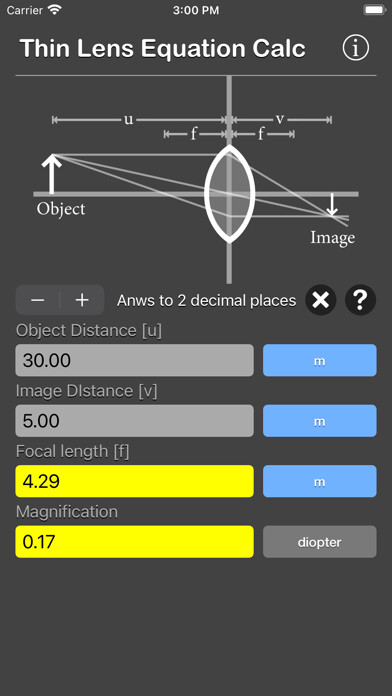

Thin Lens Equation Calc

Thin Lens Equation Calculator are physic/math calculator to find object distance, image distance, focal length and magnification fast and easy.

Features:

- Instant calculation

- Result are copy able to other app

- Formula are include as reference

- Support up to 16 decimal place

- Support various unit for each input

In optics, a thin lens is a lens with a thickness (distance along the optical axis between the two surfaces of the lens) that is negligible compared to the radii of curvature of the lens surfaces.
Lenses whose thickness is not negligible are sometimes called thick lenses.

The thin lens approximation ignores optical effects due to the thickness of lenses and simplifies ray tracing calculations.
It is often combined with the paraxial approximation in techniques such as ray transfer matrix analysis.

The position, orientation, and size of an image formed by a lens are determined by two things: the focal length of the lens and the position of the original object.

Thin Lens Equation

1/u + 1/v = 1/f

M = |v|/u

Where:

u = Distance between the object and the center of the lens

v = Distance between the image and the center of the lens

f = Focal length

M = Magnification

Thanks for your support and do visit nitrio.com for more apps for your iOS devices.,
