Resistor Plus

Resistor Color Code Calculator to calculate Resistor Values Ohm and Tolerance based on its Color Coded Bands.

Tap and Select Resistor Color Values from Color Codes from Black, Brown, Red, Orange, Yellow, Green, Blue, Violet, Gray to White.

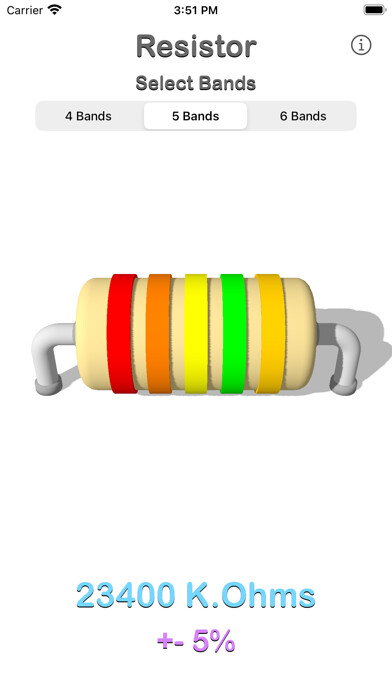

Quick Guide:

- Select resister band

- Tap resister band and select color value

- The result is shown immediately after color value is set

- The result is copy-able

- Screenshot the resister for reference

Resistor Parameters:

Band Digit

Black - 0

Brown - 1

Red - 2

Orange - 3

Yellow - 4

Green - 5

Blue - 6

Violet - 7

Grey - 8

White - 9

Band Multiplier

Black 1

Brown 10

Red 100

Orange 1 k

Yellow 10 k

Green 100 k

Blue 1 M

Violet 10 M

Gold 0.1

Silver 0.01

Band Tolerance

Brown - 1%

Red - 2%

Gold - 5%

Silver - 10%

A Resistor is a passive two-terminal electrical component that implements electrical resistance as a circuit element.
In electronic circuits, resistors are used to reduce current flow, adjust signal levels, to divide voltages, bias active elements, and terminate transmission lines, among other uses.
A resistor opposes the flow of electrical current.
The bigger the value of a resistor the more it opposes the current flow.
Values are given in Ohms

Thanks for your support and do visit nitrio.com for more apps for your iOS devices.,
