Pipe Working Pressure Calc

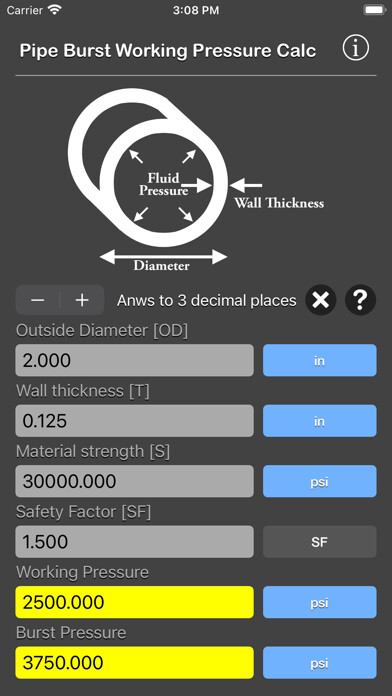

Pipe Burst Working Pressure Calculator are physic/math calculator to find Fluid Pressure, Pipe Wall Thickness, Pipe Outside Diameter, Safety factor or Material Strength.

Features:

- Instant calculation

- Result are copy able to other app

- Formula are include as reference

- Support up to 16 decimal place

- Support various unit for each input

To find out the burst pressure of pipe Barlows Formula are use and associated equations will determine the working pressure of a known diameter pipe.

Barlows Formula is an equation which shows the relationship of internal pressure, allowable stress, nominal thickness and diameter.

Equation:

P = (2*S*T)/(OD*SF)

Where: -

P = Fluid Pressure (psi)

T = Pipe Wall Thickness (in)

OD = Pipe Outside Diameter (in)

SF = Safety factor (General Calculations 1.5 10, Use 1 For Bursting Pressure)

S = Material Strength (psi) , Minimum yield strength

Thanks for your support and do visit nitrio.com for more apps for your iOS devices.,
