Magnetic Force Between Wires C

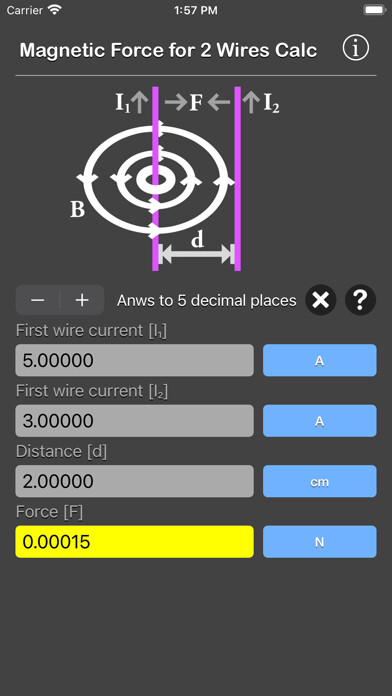

Magnetic Force Between Current Carrying Wires Calculator are physic/math calculator to find force in between wire, distance between wire, current for first wire or current for second wire fast and easy.

Features:

- Instant calculation

- Result are copy able to other app

- Formula are include as reference

- Support up to 16 decimal place

- Support various unit for each input

Find the magnetic force between two parallel, long and straight wires carrying the current.The calculation applies only to long straight wires, but is at least useful for estimating forces in the ordinary circumstances of short wires.

Currents flowing through wires create magnetic fields.
The direction is obtained from the right hand rule.
Two wires that carrying current in the same direction attract each other, and they repel if the currents are opposite in direction.

formula:

F / L = 0 * I * I / (2 * *d)

where:

I - currents flowing in the first wires

I - currents flowing in the second wires

d - distance between the wires

F / L - force per unit length acting on each wire

0 - constant value 0 = 4 * * 10^(-7) [T * m / A] is the permeability of free space

Thanks for your support and do visit nitrio.com for more apps for your iOS devices.,
