iPhone app Network Cell Analyzer V2

Dedicated application for the new generation NCA-234G router, sold by GigaConcept.
This application connects to the wifi network of the NCA-234G router, then makes it possible to scan the surrounding 2G/3G/4G networks in order to locate the most efficient mobile network, all operators combined.
Ensures the recovery of RSSI, RSRQ, RSRP, SINR, EC/IO and RXQUAL data for comparison between the different operator antennas detected.
Possibility to isolate an operator and a type of network (GSM, UMTS and LTE) and to perform regular pings in order to obtain a complete analysis.
The recovered data report can be exported in csv.
NB: the application does not work without the dedicated router.

The different screens:

- The reception will allow you to connect to the wifi of the router by scanning the QR Code of the latter.

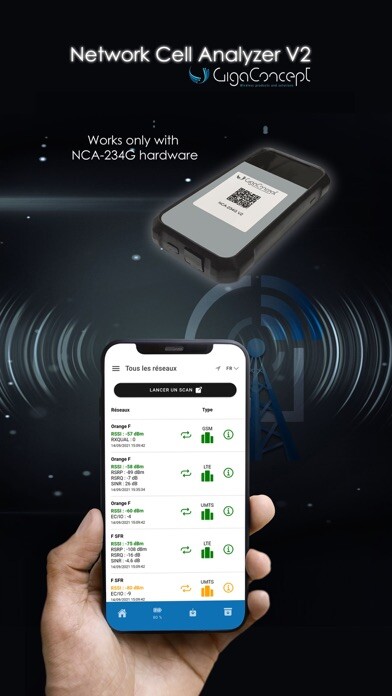

- The networks page will allow you to make a first scan and to discover all the networks available in the surroundings with their associated values (GSM, UMTS and LTE).
An export key will allow you to retrieve the scan data in a .csv file readable either in Excel or in a notepad.

- A detail page will allow you to make regular pings on a specific network and technology.
For example: Orange and LTE (4G).
A curve will display the pings made.
An export key will allow you to retrieve the scan data in a .csv file readable either in Excel or in a notepad.

- Two information pages are available to understand the type of results for LTE and RXQUAL.

- An archive page will allow you to see all the exported files.

- A configuration page will allow you to see the technical information of your router.,
