iPhone app Wiring & Controls - Diagrams

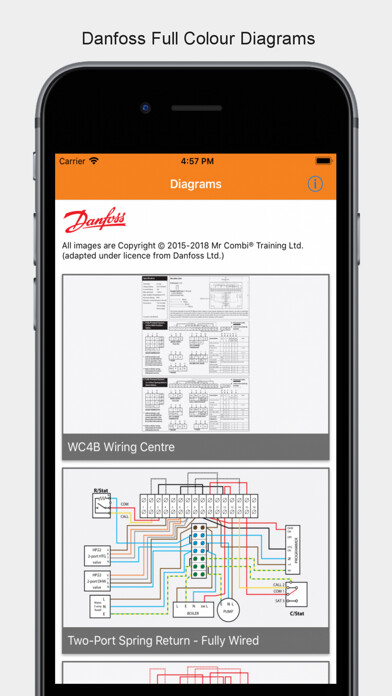

With special permission from Danfoss and Honeywell, we took their wiring diagrams and turned them into fantastic coloured wiring diagrams which are much easier to follow.
Weve been using these diagrams on our training course for over two years and everyone agrees that theyre essential for wiring up controls on two and three port installations.

Colour diagrams for Danfoss and Honeywell systems

2 and 3 port systems

Fully Wired diagrams - Shows every wire in the control circuit

Live Wire diagrams - The earth and neutral wire have been removed for clarity

Schematic diagrams - A simplified version of the circuit

Stats diagrams - Only the thermostat circuit is shown

Danfoss and Honeywell wiring centre schematics

Frost protection diagrams

Fault finding charts for Danfoss systems,
