iPhone app ELIO -DIY Bluetooth Controller

ELIO is a DIY bluetooth controller & smartphone application that enhances your creativity and your creative life.

You dont have to worry about even you dont have a knowledge about electronics , program coding , motor/LED.

1) Just connect motor/LED to ELIO

2) Create your own controller with model editor

3) Enjoy

You can see various complete toys like airplanes / ships / cars on the market.

Although these products are diverse, you easily loose interest because simple control and easy assembly.
So these toys become a poor toy which was appeared on Toy story - Disney animation .

ELIO as a DIY bluetooth service platform

1) You as a maker can easily create / realize your creative ideas.

2) You can easily recycle these abandoned toys.

*** Hardware functions ***

1.
Supports 2 DC-motors for speed control

2.
Supports 2 SERVO-motors for direction control

3.
Supports 4 I/O-ports for LEDs

4.
Dedicated 3V / 5V output

All above functions are controlled by PWM(Pulse Width Modulation), so fine speed / direction / brightness control is possible.

*** APP functions ***

1.
Model editor

Model editing feature is a key function, that enables you create your own motion controller.

1) Just drag & drop controller that interacts with your finger

2) Place Motor / LED in your controller

3) Adjust detail settings like power range, default value and calibration value for your preferences.

2.

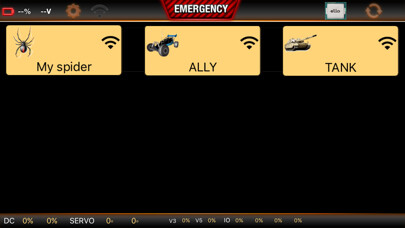

Provide default models

Pre-installed models on the market

* Demo model, car (SERVO direction / DC direction), Tank, Spider

3.
Fixed model

Also support model which dont need to be controlled like dolls house.

4.
Firmware update

This feature enables ELIO up to date.,
