Stress Concentration Factors 2

Sometimes simple stress formulae are not enough.
The real peak stresses in hardware occurs at geometric discontinuities such as notches, holes, & filets.
To get an accurate stress value, you need a stress concentration factor.
This app makes that easy.
Along with stress concentration factors, this app calculates the nominal and peak stresses, displays the equations, & easily prints or shares via email your result with a couple of taps.

Stress Concentration Factors 2 Features:

- Calculates the Stress Concentration Factor

- Units in Metric and English Systems

- Nominal Stress

- Peak Stress

- Designed for use on the iPhone, iPod Touch, & iPad

- Printing Capability

- Ability to email a PDF of the Geometry, Inputs, Equations, & Results

Stress Concentration Factors 2 calculates the stress concentration factors & displays the equations for 26 different geometries including:

Solutions:

Single U Notch in tension

Single U Notch in bending

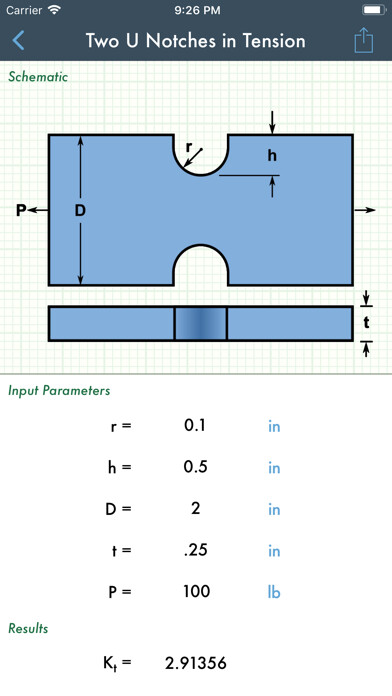

Double U Notch in tension, bending, & out of plane bending

Single V Notch in bending

Infinite Row of U Notches in tension

Central Hole in tension

Central Hole in bending, & out of plane bending

Off Center Hole in tension & bending

Rectangular Hole in tension

Infinite Row of Holes in parallel & normal tension

Square Shoulder Fillet in Tension

Square Shoulder Fillet in Bending

U Notch Circular Shaft in tension

U Notch Circular Shaft bending & torsion

Stepped Circular Shaft in tension, bending, & torsion

Circular Shaft with a Radial Hole in tension, bending & torsion

Check out our other engineering apps by searching the App Store for:

Pressure Vessel Pro

Moments of Inertia

Mohrs Circle

Stress Intensity Factors Pro

or search J.R.Hobbs to see them all.,
