Vaetrix Remote Gauge

Vaetrix Remote Gauge is a free application designed to help you measure, troubleshoot, and calibrate process control equipment.
View and analyze pressure trends remotely live on all Vaetrix ETG Series gauges equipped with the Bluetooth communication option.
Set high and low pressure alarms so that you can can quickly identify and react to critical conditions.

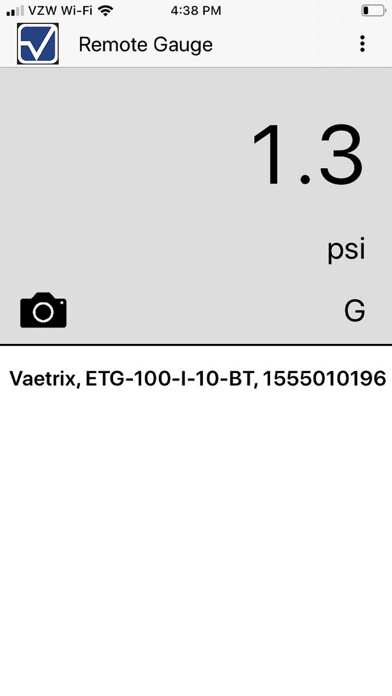

Monitor minimum, maximum, and live pressure readings simultaneously on your phone.
Works with FCC regulated and approved Bluetooth (BLE) for wireless communication with an average range of 12 meters or 40 feet.

Key Features:

Zero Gauge - Perform a zero to eliminate offset errors

Hide Gauge Display - Lockout local display and increase update rate

Unlock Admin Features - Configure the gauge to your preferences

Show Min/Max - View min, max, and live pressure readings

Show Tare - Tare live pressure or enter in value

Data Logging - Start, configure, or stop a logging session

Start Leak Test - Calculate leak decay in units per minute

Turn Damping On - Ideal for applications with pulsating pressure

View Snapshots - View recorded readings with date and time stamp

Limit Engineering Units - Narrow down choices based on pressure range

Use Gauge Sensor - Switch from gauge sensor to barometric

Configure Alarms - Turn on, off, or set low and high pressure alarms

Change Device - Switch devices if monitoring more than one process,
