iPhone app Villa 3D - CAD Home Design download it using MyAndroid.

Villa 3D - Move, transform, rotate boxes (from different materials) to create a project.
The area, volume, number of necessary materials for real construction is automatically calculated!

- New AR (Augmented Reality) and UR view modes.

You can import your projects into Mac app Home Repair 3D Pro.

Max 1000 objects

box = paralelepiped

tri = triangle

tor = torus (ring).

ATTENTION! If you have an old project with not correct materials, simply replace this: <= Export HDL v2.0 = to this: <= Export Villa 3D v1.0 =

and press Save button (do that only once for a project!)

1.
Button [S]:

- Select a project.

- To export 3D geometry from an existing project in the form of text tap [Export].

- If you want to change an existing project in the text field and save it - edit, and then tap [Save].
WARNING! New project will replace the existing one!

- To import another project: copy text from the Internet, mail or documents, paste in text field, and tap [Save].
WARNING! New project will replace the existing one!

2.

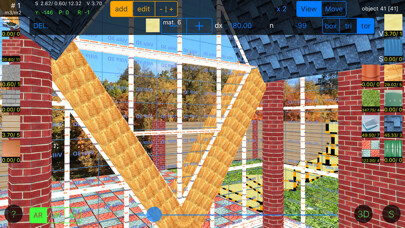

Button [3D]:

Tab [add]:

- Select view mode (AR (Augmented Reality), UR, 3D).

- To add an item, simply tap the image with the material on the middle of the screen.

- To edit an object, select it by tapping on it.

- You can select three types of objects: [box] = parallelepiped, [tri] = triangle, [tor] = torus (ring).

- In the mode tri you can enter an offset upper vertex of the triangle (dx), and in the mode tor you can enter the size of the torus sector in degrees 3 - 360 [dx] and the number of segments of 1 - 90 [n] (95 = 5 spiral staircase; -97 = -7 spiral staircase).

- [SAVE] - save the changes (when you select another object current object saves automatically).

- [DEL.] - delete the current object, [x2] - duplicate current object.

Tab [edit] & [-|+]:

- Set the size (width A, length B, height h).

- Adjust the X, Y, Z position of the object.

- If necessary, you can rotate the selected object along the three axes using three buttons - + (bottom right).

- Under the picture of each material the app dispays area (S) or volume (V) of material and number of objects with this material.

3.
To share the project:

- Tap [S];

- Tap [Export];

- Hold your finger on the text;

- Tap [Select All];

- Tap [Copy];

- Paste it in the letters for your friends, or anywhere else!

The application automatically calculates the area, volume and number of necessary materials.

CM - INCH setting can be changed on the fly.

Accuracy of input parameters is 0.01 cm or 0.01 in.,
