Geostationary Orbit 3D Lab

About

An open source physics at Singapore simulation based on codes written by Francisco Esquembre and Loo Kang WEE.

more resources can be found on support URL

Introduction

A geostationary (Earth) satellite is a satellite that rotates around Earth in a certain orbit such that it is always positioned above the same point on the Earths surface.
Hence from the point of view of an observer standing at that point, the geostationary satellite appears to be always stationary above him/her (but actually, both observer and satellite are rotating at the same angular speed).
In order for a satellite to be moving in such a geostationary orbit, there are certain conditions to meet:

placed vertically above the equator

same directional sense as the rotation of the Earth (determine through axis of rotation)

same orbital period of Planet, in our case, Earth, thus the orbital period of approximately 24 hrs

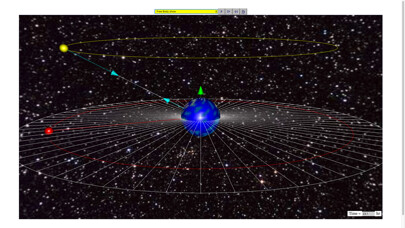

The simulation has a Earth and a Satellite object Menu Drop Down Allows for selecting what motion of Satellite is simulated.

Geostationary near Singapore

Geostationary near Africa

Geostationary near America

Non-geostationary due to direction

circular motion r=3*Re, T =7.30 hr

circular motion r=10.5*Re, T = 48 hr

Non-Geostationary generally

Unlikely Orbits

Options added are:

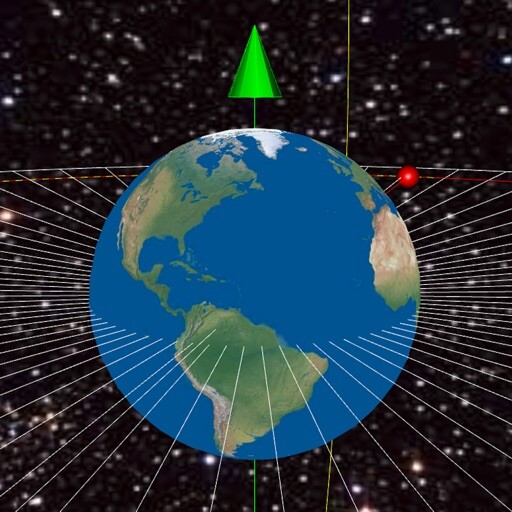

Show: equator Plane, for visualising the Earths rotating equator plane

Geo stationary, for visualising a geostationary object (RED) for comparative observation with the other modes.

Show text: 35 700 km fixed position of object relative to planet earth.

Axes earth: show spin axes of the rotation of earth in GREEN

Axes satellite: show spin axes of the rotation of satellite in MAGENTA

Force: pair of action reaction force of equal magnitude, opposite direction and on different bodies.
(Newtons 3rd Law)

Acknowledgement

My sincere gratitude for the tireless contributions of Francisco Esquembre, Fu-Kwun Hwang, Wolfgang Christian, Flix Jess Garcia Clemente, Anne Cox, Andrew Duffy, Todd Timberlake and many more in the Open Source Physics community.
I have designed much of the above based on their ideas and insights.

This research is supported by the eduLab project NRF2015-EDU001-EL021 , awarded by the Prime Minister Office, National Research Foundation (NRF), Singapore in collaboration with National Institute of Education (NIE), Singapore and the Ministry of Education (MOE), Singapore.,
