iPhone app XswingMBasic

1.
This App displays shot information from the provided

camera sensor(It is sent to the address you

designated).
The shot data will be made from the

golfer.

2.
The target hardware is the iPad air or the hardware

with higher power than this.
It is because hardware

device with low power takes too much time to

process shot data.

3.
How to test

3.1.
Turn on the sensor.
You can find the power button

on the right side of the sensor.

3.2.
When you need to recharge it, you can do it by

by connecting the sensor using USB cable.
The

slot for USB cable is under the power button.

3.3.
After turning on the power, on your device, you

will find the wifi starting with SkyTrak.
in the

wifi list.
Please connect to this wifi.

3.4.
Now start the app.
Then hit the discover button.
It

is located on the top right side.

3.5.
This will pop up a window with the wifi name you

selected on the device.

3.6.
Tab on the wifi name.
This will make the app

connect to sensor and relevant icon will replace the

x icon.

3.7.
Now when everything is done correctly, three

lamps light will be all green and laser will point

a spot.

3.8.
Place the golf ball(or any ball with similar size,

such as table tennis ball) on the spot the laser beam

indicates.

3.9.
Hit the ball with rather high speed.

3.10.

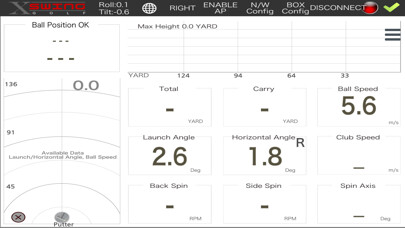

It will first display the ball speed, launch angle,

horizontal angle.
After few seconds, it will display

such as spin values, carry, total, trajectory lines, etc.,
