SignalScope X

SignalScope X offers a range of powerful measurement and analysis tools to enhance your productivity in areas such as acoustics (sound and vibration), audio, electronics, and electroacoustics.

SignalScope X includes a free oscilloscope tool.
SignalScope X makes additional tools available via 3 tiers of subscription-based tool sets to meet your basic, advanced, and professional needs.
Each subscription works on your iPhone, iPad, and Mac.

Features:

- Analyze signals coming from the Mac or iOS devices current audio input device.

- Assign engineering units to your input signals and calibrate external transducers for accurate measurements.

- Assign input channel units and sensitivities for individual USB Audio devices.

- Connect lab-grade microphones and sensors to your Mac, iPad, or iPhone with suitable interface hardware for precise measurements.

- SignalScope offers enhanced support for select hardware from Digiducer, The Modal Shop, and miniDSP.

- Nominal acoustic sensitivities included for iPhone and iPad built-in microphones, voltage sensitivities for headset input (including the standard Lightning-to-headset adapter).

- Manually switch between available audio input and output sources.

- Load microphone frequency response data (FRD) and apply frequency response correction (FRC) to FFT-based measurements.

- Manually adjust audio sample rates, even up to 768 kHz, depending on hardware.

- Save acquired measurement data to CSV, TXT (tab-delimited), or MAT files.

- Save high-resolution analyzer display images to PDF files.

- Retrieve your data files from your device via Files (iCloud Drive), iTunes File Sharing, or through a web browser on another device.
Files may also be opened in other compatible apps (e.g.
Mail, Notes, Numbers, Dropbox, etc).

Basic Tools:

- Oscilloscope

- FFT Analyzer - Spectrum analyzer with user-settable frequency limits and input triggering

- 2D Real-time Spectrogram Analyzer

- XY Plotter - Create Lissajous curves or visualize your stereo mix

- Stereo Signal Generator

Advanced Tools: (Advanced Tool Set also includes basic tools)

- 3D Real-time Spectrogram Analyzer - Stunning live visualization of incoming data

- Octave-band Analyzer - Whole and 1/3-octave RTA

- Level Meter - Overall signal level meter

- Max Levels

- Noise Dosimeter

- Data Recorder - Stream up to 8 channels to WAV, AIF, or CAF audio files

- Multi-channel Audio File Player - Analyze pre-recorded data

Pro Tools: (Pro Tool Set subscription includes basic and advanced tools)

- Dual-channel System Analyzer (Dual FFT analysis with support for Frequency Response Magnitude/Phase, Phase Delay, Group Delay, Coherence, Impulse Response and Cross-Correlation)

- Sound Intensity Analyzer - With a suitable p-p probe, measure sound intensity and acoustic particle velocity spectra (narrowband FFT and whole or 1/3-octave bands) and time waveforms.

- Room Acoustics Analyzer (T20, T30, T60, nonlinearity, EDT, Early Decay Time, Center Time, Clarity, and Definition in various frequency bands, adjustable Schroeder integration limits)

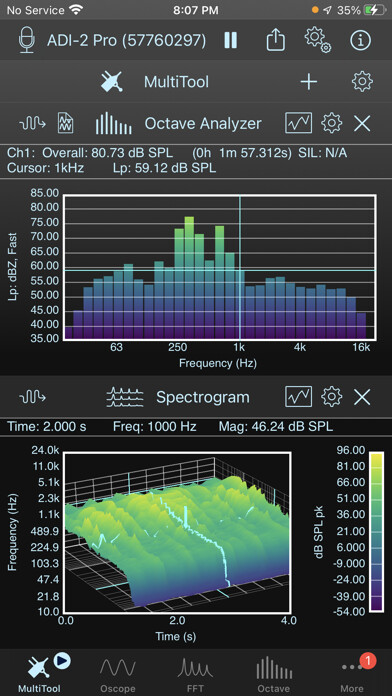

- MultiTool - Powerful data monitoring and project management (Add 2-6 subtools, depending on screen size, and save configurations for easy recall at a later time.)

- Polar Plot - Generate beautiful high-resolution plots of polar data loaded from properly formatted data in a text or csv file.

Additional Pro Features:

- User-defined custom metadata in saved audio and data files

- Data logging support in the Level Meter, Octave Analyzer, and Noise Dosimeter

- Percentile exceeded sound levels in the Level Meter and Octave Analyzer

- NC, RNC, and NR references curves, NC, SIL, and NR values in the Octave Analyzer

- Voltage decibel levels can be displayed in dBV or dBu
