iPhone app Ron StageMaster Monitoring

Ron StageMaster Load Monitoring system is a high quality, wireless, multi-point load monitoring system and overload prevention on stage.

The system was developed by Eilon Engineering a company who specializes in development of load monitoring systems with more than 40 years of experience - as a solution for the increasing need for load monitoring and overload prevention in the entertainment segment stages, venues, convention centers, theaters and tours.

The system is composed of Load Cells that measure the loads and update via RF a portable radio receiver (PRR ) which receives all the updates and send it via Bluetooth to the users/operator IPhone or I Pad.

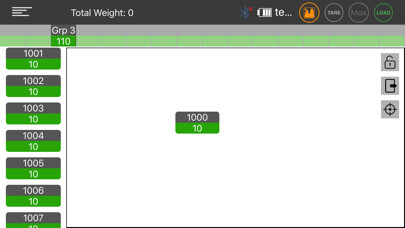

On the display device (IPhone / I Pad) the loads can be displayed on a real time load map plan of the venue or as a list or as a bar graph display.

The wireless load cells are independent, easy to install and constantly measuring and updating the measurement in real time, running on 4 AA batteries it is capable of working up to 5000 hours in a once a second update rate.
The range of communication between the load cells and the PRR is up to 200 meters line of sight (with option to a longer range).

The PRR is capable of receiving up to 40 load cells and updating the display device (IPhone / I Pad) once a second.
The range between the PRR and the display device (IPhone / I Pad) is up to 200 meters line of sight, running on 2 AA batteries it is capable of working up to 40 hours, it can work also while connecting to the mains.,
