iPhone app Steel Profiles Catalogue

This app contains a wide range of structural shape sizes.
A simple quick and organised way to have access of the main information needed for structural calculations from your iPhone.

You will find here information about their properties:

Geometry: depth & width of section, total area, shear area, web & flange thickness, radiuses, depth of straight portion of web, mass.

Structural information (strong & weak axis): second moment of area, radius of gyration, elastic & plastic section modulus.

You will be able also to calculate the beam weight and cost.

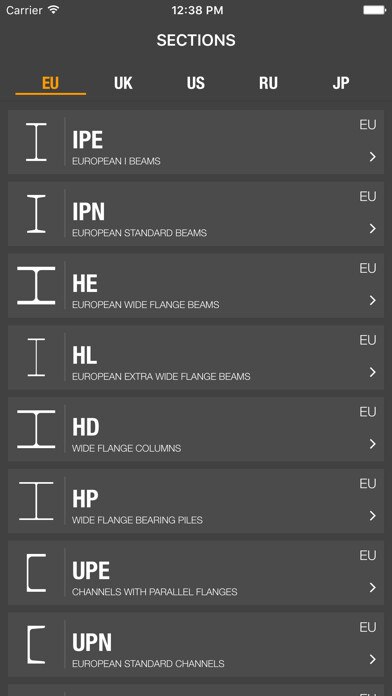

SECTIONS

__ EU __

IPE - European I beams

IPE 80 - 600 in accordance with former standard EU 19-57

IPE AA 80 - 550, IPE A 80 - 600, IPE O 180 - 600, IPE V 400-600, IPE 750 in accordance with AM standard

IPN - European standard beams

IPN 80 - IPN 550 DIN 1025-1: 1995, NF A 45-209: 1983

IPN 600 DIN 1025-1: 1963

HE - European wide flange beams

HE A, HE B and HE M 100 - 1000 in accordance with former standard EU 53-62; HE 1000 with GHE>GHEM in accordance with ASTM A 6/A 6M

HE AA 100-1000 and HE C in accordance with AM standard

HL - European extra wide flange beams

AM Standard

HLZ - European extra wide flange beams

ASTM A 6/A 6M

HD - Wide flange columns

HD 360 / 400 in accordance with ASTM A 6/A 6M

HD 260 / 320 in accordance with AM standard

HP - Wide flange bearing piles

AM standard

UPE - Channels with parallel flanges

DIN 1026-2: 2002-10

UPN - European standard channels

DIN 1026-1: 2009, NF A 45-202: 1986

U - Channels with taper flanges

AM standard

L - Equal leg angles

AM Standard

LD - Unequal leg angles

EN 10056-1: 1998

__ UK __

UB - British universal beams

BS 4-1: 2005

J - British joists with taper flanges

BS 4-1: 2005

UC - British universal columns

BS4-1: 2005

UBP - British universal bearing piles with wide flanges

BS 4-1: 2005

PFC - British parallel flange channels

BS 4-1: 2005

CH - British channels with taper flanges

BS 4-1: 1993

__ US __

W - American wide flange beams

ASTM A 6/A 6M

S - American standard beams

ASTM A 6/A 6M

HP - American wide flange bearing piles

ASTM A 6/A 6M

C - American standard channels

ASTM A 6/A 6M

MC - American channels

ASTM A 6/A 6M

L -American equal leg angles

ASTM A 6/A 6M

LD - American equal leg angles

ASTM A 6/A 6M

__ RU __

HG - Russian hot rolled beams

STO ASCHM 20-93; For G G18B2 dimensions according to GOST 26020-83

UE - Channels with taper flanges

GOST 8240-97, PN-H-93451: 2007

__ JP __

H - Japanese H sections

JIS G 3192: 2008; JIS A 5526: 2005,
