iPhone app ElectriCalc Pro

The official US-based National Electrical Code (NEC) ElectriCalc Pro from Calculated Industries for iOS is a full-featured emulation of our popular #5065/#5070 models.

And while perhaps obvious, if you change from an iOS device to a non-iOS device, you WILL need to buy a new license as they are incompatible.

In addition to built-in help, the ElectriCalc Pro electrical code calculator is fully compliant with 2017, 2014, 2011, 2008, 2005, 2002, 1999, and 1996 NEC.

Electrical Contractors, Designers, Electricians and Lighting Specialists solve tough electrical calculations in seconds and deliver those solutions in conformance with the latest NEC.

The ElectriCalc Pro is a complete electrical reference tool that will save time, trouble and money.

FEATURES:

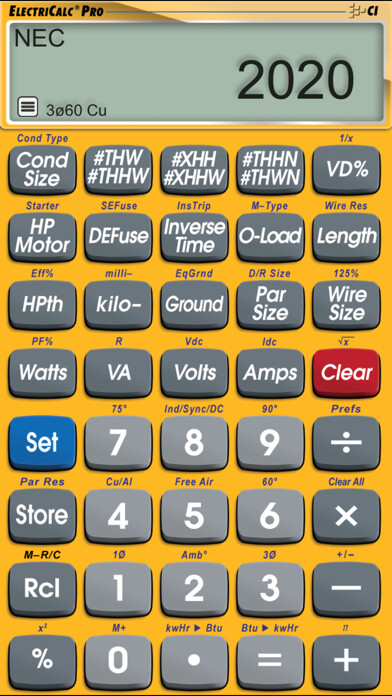

All the functionality and solutions of the handheld ElectriCalc Pro calculator and optimized for the iPhone/iPod Touch user

Built-in help just press and hold the desired key for full, clear definitions, explanations and examples of keystrokes

A complete Users Guide is available free at (go to ElectriCalc Pro support link below)

Swipe left to right to edit an entry (backspace)

ElectriCalc Pro Solutions:

Wire Sizes

Voltage Drop

Conduit Sizing

Motor Full-Load Amps

Fuse and Breaker Sizes

NEC Table Number displayed when performing Wire Size calculations

Service and Equipment Grounding Conductor Sizes

Enter BTU to find Kilowatts per Hour

Enter Kilowatts per Hour to find BTU

Parallel Resistance

Ohms Law Calculations enter any two values to solve for the third

Circular MILS wire sizes

Description of ElectriCalc Pro Calculations:

Work directly in and convert between Amps, Watts, Volts, Volt-Amps, kVA, kW, PF% and EFF% and DC Resistance

Calculate wire sizes per NEC 310-16 and 310-17; Copper or aluminum, 3/1, 60C, 75C, 90C insulation ratings and 100% or 125% of ampacity.
Can also adjust wire sizes for ambient temperatures other than 30 C and for more than three wires in a raceway

Integrated voltage drop solutions.
Find minimum VD wire size, maximum Length for any given wire size, drop percentage, actual number and percentage of Volts dropped

Conduit sizing for 12 types of conduit.
Per 2005 and 2008 NEC Table C1-C12, find sizing of all common conduits for any combination for #THW, #XHHW and # THHN wires.
Plus, gives fill percentages, cross-sectional areas, remaining areas and more

Find Motor Full-Load Amps per current NEC.
Works in 1 and 3 with the new expanded tables for 3 induction (to 500 hp) synchronous (to 200 hp) and DC motors per NEC 430-247, 430- 248 and 430-250.

Calculates Fuse and Breaker Sizes.
Solves fuse and breaker sizes per NEC 430-52

Parallel and derated wire sizing

Parallel Resistance

NEC Table number displays when performing Wire Size calculations

Sizes overload protection per NEC 430-32

Automatically finds NEMA starter sizes.

Calculates service and equipment grounding conductor sizes per NEC 250-122 and 250-66; plus works directly in electrical terms.

Enter BTU to find Kilowatts per Hour

Enter Kilowatts per Hour to find BTU

Ohms Law Calculations enter any two values to solve for the third.

Enter, solve or convert to Circular MILS wire sizes

Note: Electrical math is universal, however, code-based sizing solutions are based on the US National Electrical Code (NEC); users in other countries should check with their local Code Officials for applicability.

TRADEMARKS:

ElectriCalc is a registered trademark of Calculated Industries, Inc.,
