QuickBend: Conduit Bending

QuickBend is the quickest and most accurate conduit bending calculator app.

QuickBend is an advanced conduit bending calculator that was created to be fast and accurate while being visually appealing, innovative, and intuitive.
Offering you the most accurate measurements using the center-line radius algorithm based upon the bender that youre using.

Easily select between different types of benders and choose the size of the shoe and conduit type that youre using.
The last bender that you selected will be the bender that appears when you open the app up again.
See and edit your benders information (Center-line Radius, Deduct, Gain, Setback, Travel, and Radius Adjustment) within the Bender Specs section.

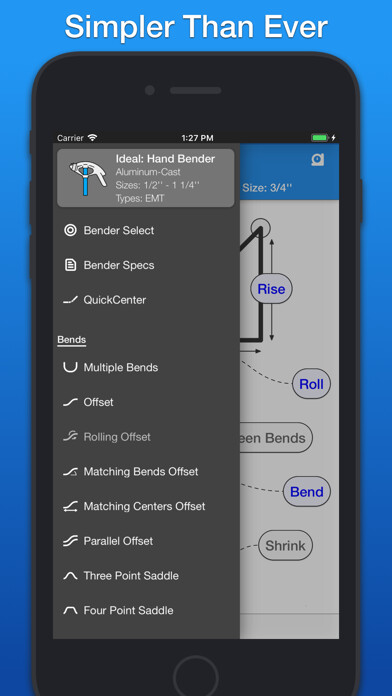

QuickBend supports the following bends.

Offset

Rolling Offset

Matching Bends Offset

Matching Centers Offset

Parallel Offset

Three-Point Saddle

Four-Point Saddle

90

Kick With 90

Matching Bend Kick

Matching Center Kick

Parallel Kick

Multiple Parallel Kicks

Compound 90 - Circle Obstruction

Compound 90 - Rectangle Obstruction

Compound 90 - Square Obstruction

Segmented 90

QuickBend Benders

Cosecant (Okay.
its not a bender, however; if you prefer the multiplier method with no radius.
Its available.)

Current Tools: 750/751

Current Tools: 77

Current Tools: 747

Gardner Bender: Big Ben

Gardner Bender: Sidewinder

Gardner Bender: Electric Sidewinder

Gardner Bender: B2000 Cyclone

Gardner Bender: Ultra Eegor

Gardner Bender: B300 Series

Greenlee: Hand Benders

Greenlee: 1800/1801

Greenlee: 1818

Greenlee: 555

Greenlee: 854DX

Greenlee: 855GX

Greenlee: 881

Greenlee: 884/885

Ideal: Hand Benders

Klein: Hand Benders

QuickBend Multiple Bends

Layout multiple bends on a single stick of conduit.

Offset to Obstruction

Offset from Obstruction

Three Point Saddle

Four Point Saddle

90 Bend, Kick

Kick with 90

Place a cut mark for those rare occasions that you need to cut and thread the conduit before bending.

Flip bends around.

Graphic representation of where the bend/cut will layout on a stick of conduit.

Bend layouts are based on your benders centerline radius, deduct, and gain.

Toggle Measure to Centers to help line up conduits when working on raceways with multiple conduit sizes.

QuickBend includes a protractor level which is easily accessible and can be Zeroed by a simple tap.

QuickBend allows you to pick between either form of measurements, imperial (inches) or metric (cm).

QuickBends QuickCheck indicates if bends are impossible by a subtle change of turning the measurements and text red.

QuickBends center-line radius algorithm is especially useful when bending conduit that is larger than 1 inch and bends that exceed 30 degrees.

If youd like to make any suggestions or just want to say hi please e-mail me at [email protected],
