XBeam

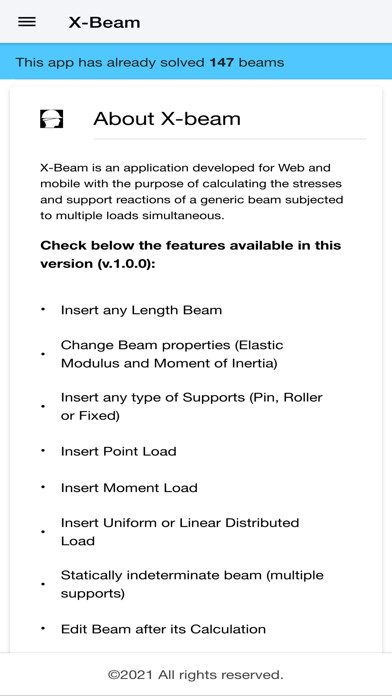

XBeam is an application developed for Web and mobile with the purpose of calculating the stresses and support reactions of a generic beam subjected to multiple loads simultaneous.

Check below the features available in this app:

Insert any Length Beam

Change Beam properties (Elastic Modulus and Moment of Inertia)

Insert any type of Supports (Pin, Roller or Fixed)

Insert Point Load

Insert Moment Load

Insert Uniform or Linear Distributed Load

Statically indeterminate beam (multiple supports)

Edit Beam after its Calculation

Generate Shear Force Chart

Generate Bending Moment Chart

Generate Displacements

Download .PDF Report available,
