UART-Smartwatch

Download this app named UART-Smartwatch.

This App is a part of a Do-It-Yourself project: Build your own Smartwatch with a bluetooth UART interface, Firmware and Circuit.
The Circuit uses low cost parts: Arduino Pro Mini, a HM-10 (CC2541) or Bluefruit LE UART friend or nRF51822-04AT serial bluetooth module and a monochrome oLED SSD1306 display (128x64 pixel).
Firmware and circuit are modified for a low cost version.
## Details
The UART Smartwatch App is the non-mini App (master branch on github; "mini" is the gplay branch).
You find UART-Smartwatch on http: //f-droid.org and an APK on github.
## The Firmware
You get the Arduino-IDE file from github: https: //raw.githubusercontent.com/no-go/UART-Smartwatch/gplay/UART-Smartwatch_firmware/UART-Smartwatch_firmware.ino
## Features
* blinking LED, if a new notification is present
* 250 chars notification buffer (Display needs so much dynamic RAM)
* Button 1: get a fresh time and the notification buffer from your smart phone
* Button 2: display the time and power level for 4 seconds
* Button 2 (press for more than 4 seconds): switch to a different time mode
* runs for more than 6h (first and second time mode)
## Time Modes
* Digital (4sec)
* Analoge (4sec)
* PipBoy Design (4sec)
* Digital for ever

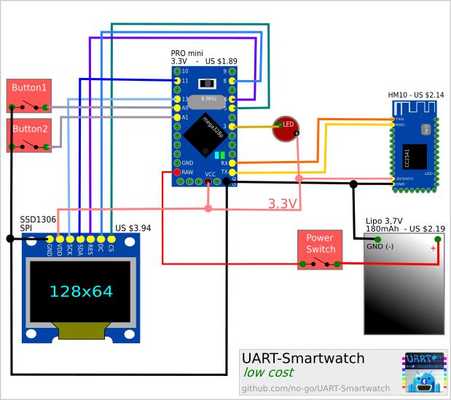

## Circuit
Attention: You need a serial USB device (less than US 4$) to store the firmware on the ProMini chip.
You need a small circuit (less than US 1$ on aliexpress) to load the Lithium polimere akku (Lipo).
## License
I publish everything under the free BSD-3 License.

Updates:

more freedom to configure your Bluetooth 4.0 Low Energy UART device! Preconfigured: HM10 - CC2541, Bluefruit and nRF51822-04AT
