Download online Thread calculator.With this app you get a tool for generating CNC thread cycles. You get a complete table of all threaded thread measuring. The app generates NC code with G76, G32, G33, G92 and CYCLE97 G76 cycles are calculat

Download this app named Thread calculator.

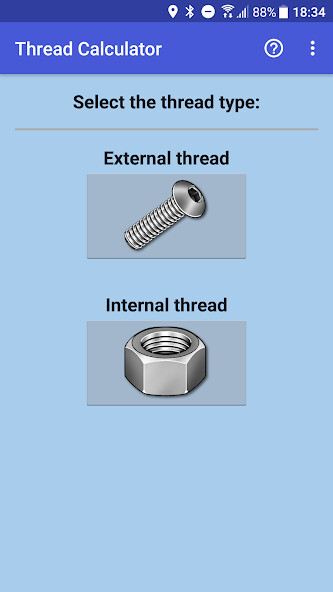

With this app you get a tool for generating CNC thread cycles.
You get a complete table of all threaded thread measuring.
The app generates NC code with G76, G32, G33, G92 and CYCLE97
G76 cycles are calculated with one or two lines and for Mach3 controllers.
It includes thread dimensions and tolerances of:
- ISO-Metric ( M1 - M68 ) DIN 13-1 / DIN 357
Toleranzen:
M1 - M1,4 6h/5H
M1,6 - M86 6g/6H
- Gas pipe ( G1/8 - G6 ) Tolerances: medium
- Withworth ( W1/16 - W3 ) Tolerances: medium
- UNF UNO0 - ( U1 1/2 ) Tolerances: 2A/2B
Included are:
- Thread nominal dimension:
- Including all Tolerances for (Min.
+ Max.) of Outerdiameter, Flanksdiameter, and Corediameter.
- Also Including the Drill diameter.
(example for Taping)
In the premium package are also included
It is also possible to generate NC-Code for cylindric, conical, and multiple threads.
- ISO-Metrisch Fine thread ( M1 - M1000 )
Tolerances:
Externalthread a3 - h9
Internalthread A4 - H8
- ISO MJ (M1.6 - M39) ISO 5855
- BSF ( B3/16 - B3 )
GB 55° British Standard Fine
Tolerances:
Extrnal: Medium
Internal: Normal
- UNF ( UNO0 - U1 1/2 )
USA 60° National Fine
Tolerances: 2A/2B
- UNEF ( ENO12 - E1 5/8 )
USA 60° National Extra-Fine
Tolerances: 2A/2B
- UNC ( UNO1 - U4 )
USA 60° National Coarse
Tolerances: 2A/2B
- NPT ( NPT1 1/16 - NPT12 )

Updates:

New features
BSPT R - outer thread
BSPT Rp - internal thread
Entry and exit path for conical threads can be set under Settings
(With number times slope)
ISO code for LinuxCNC controllers
