Download online SMS Model Plane Control FY31.This APP was created to remotely control Model Airplanes with a FY31 Autopilot from Feiyu-Tech on it. Instead of using limited range Data Radio, you can now use the vast mobile phone coverage. It

Download this app named SMS Model Plane Control FY31.

This APP was created to remotely control Model Airplanes with a FY31 Autopilot from Feiyu-Tech on it.
Instead of using limited range Data Radio, you can now use the vast mobile phone coverage.
It is similar to a Data Radio, but it works by sending SMS to another phone installed inside the Airplane and connected via USB to the FY31 controller.
In more details, you need two phones with the APP installed.
The first one you have to install inside your airplane.
Than connect it to the UART port via USB cable to the FY31 controller (provided when you buy the Controller).
Once that is done, open the AAP and it should connect to the controller automatically (it needs to be on without screen lock during the flight).
Once that is done, from the second Mobile Phone that will be with you on the ground, you have to enter the phone number for the Mobile installed on the plane.
Now you can send and receive commands from the on board FY31 Autopilot.
You have an option to locally test the Mobile connected on the FY31 by Checking "Test (no SMS)".
Also, have in mind that there are some "Test Simulation Input" on this beta version, so you may receive results even if not connected.

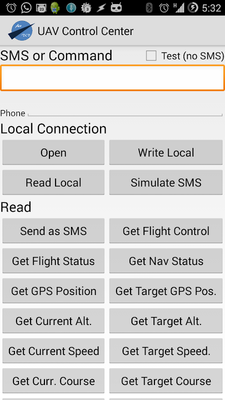

The functionalities available:
Read Functionalities:
- Send any Hexadecimal command.
- Get Flight Control Information.
- Get Flight Status Information.
- Get Navigation Status Information.
- Get Current Altitude, Speed, Corse, Power Voltage, Control Voltage, Power Consumption and Power Current.
- Get Target Altitude, Speed, Course, and distance from Airline and distance from Target.
Navigation Functionalities:
- Get Current GPS Position (see it on Google Maps).
- Get Next Target GPS Position when in Navigation Mode (see it on Google Maps).
- Read Navigation Target Coordinates and display on Google Maps.
(Only up to 5 coordinates).
- Select on Google Maps up to 5 new Coordinates.
- Send up to 5 selected coordinates to the FY31 Controller.
Parameters Set:
- Set the Control to RC Off (meaning it will not respond to the RC, only to the FY31 Controller) - It is required to set this whenever you want to control your plane via SMS, otherwise the RC will override any command you send.
- Set the Control to RC On (give the control back to the RC).
- Set Return to Launch (only when RC OFF).
- Set Auto Circling Mode (only when RC OFF).
- Set Navigation Mode (only when RC OFF).
This will send the plan to the defined coordinates, canceling any Auto-Circle or RTL.
- Heading Lock when flying with RC ON and Navigation Mode on the RC.
- Altitude Lock when flying with RC ON and Navigation Mode on the RC.
- Navigation Lock when flying with RC ON and Navigation Mode on the RC.
* Have in mind that whenever you set RC OFF, it will automatically enter Navigation Mode.
**Important: Use this on your plan at your own Risk! Not responsible if you end up crashing your model.
**Important: Have in mind that SMS may have costs depending on your data plan.
Once again this is your responsibility.
**Important: To better understand the commands, it is important that you are familiarized with all functionalities of FY31 Autopilot.
Please read carefully the Instructions Manual on their Web Site.
** Most Important: This is a Beta, so send me any issues you may find!

Updates:

Initial Version for Trial.
