Pocket OTDR

Download this app named Pocket OTDR.

FiberPal Pocket OTDR series, with power meter built-in, is designed with ultra portable, light, reliable and easy to use as Fiber Quick test and Troubleshooter to locating fiber connector, break and imperfections for PON DSN, FTTX, CATV and optical LANs.

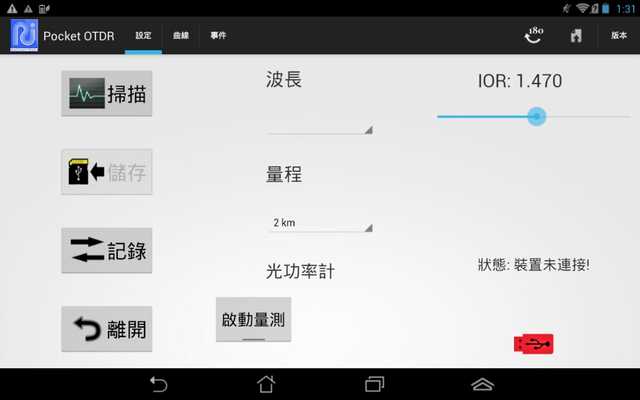

FiberPal Pocket OTDR series detects event locations along the optical fiber and displays the results on a portable device like notebook, Tablet PC and Mobiles phones with Android 4.x or Windows XP/ Windows 7 operation system.
The Application Program Software is used for data analysis, processing and storage.
With USB interface port, enabling FiberPal Pocket OTDR to transfer test data through portable device to cloud easily
Technical Specification:
Wavelength option 1310nm/1490nm/1550nm/1625nm or 1650nm
Dynamic Range (SNR=1) 1~3 Wavelength@5km or 10km
Event Dead Zone ≤ 3m
Attenuation Dead Zone ≤ 9m
Sampling Resolution 0.25m ,0.5m, 1 m
Fiber under test 9/125 µm single mode fiber
Connector FC or SC
Sampling Point ≥48000
Distance Accuracy ± ( 3x10-5 x distance + marker resolution ) ( Fiber index error not included )
Loss Accuracy ± 0.05 dB/dB or 0.1 dB/dB
Return Loss Accuracy ± 4 dB
Max.Display 5 km or 10km
I/OPort mini USB
Power meter -30 dBm < Po < 0 dBm
Language default English (Traditional Chinese)

Updates:

Improve the function of test event table





Free download Android Pocket OTDR from MyAndroid.net
