Insane Rockets

Download this app named Insane Rockets.

Records video, captures data, and helps with tracking down landing location when installed in a high powered (G and higher motor) hobby rocket or weather balloon.
Warning: Launching rockets or weather balloon with a phone onboard is risky and a mishap could destroy the phone! Make sure you read the entire first Help section.
Before going further, as a backup procedure, it is recommended that you Login to google and go to https: //www.google.com/android/devicemanager.
Make sure your phone is showing proper location prior to launch.
Limitations:
* Prior to launching, if using your phone to assist in recovery with GPS, confirm your phone has a GPS - telemetry GPS derived by wifi will not operate in the field.
Limitations may vary depending on the android device you have.
These may include: Max Gs reported, inclusion of Barometer data, speed of instrument updates, and resolution of video/audio data.
* Gs: The values of older phones typically are maxed on each axis at 2Gs.
Some of the newer phones have a range max between 2Gs and 16Gs.
Features:
* Real time telemetry data on landing to help you find the location of your rocket/payload.
This data is sent over the cell network so you don't need any additional hardware.
* Records on most modern android phones at 1080p.
It takes around a second to "warm up" the Video camera on launch.
You can however, command from another phone, to prerecord so you get Video "off the rail."

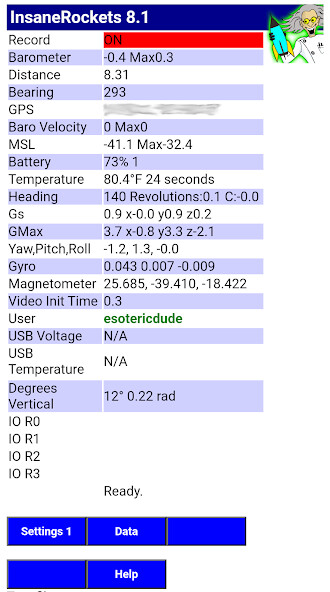

* Records telemetry data: Yaw, Pitch, Roll, Heading, 3 Axis Gs, Gyroscope, Barometer & derived Velocity, GPS on 1/20 of a second time slices.
* On landing, you can configure Insane Rockets to automatically upload your telemetry data AND YouTube video! Before you even recover your rocket/payload, the Video and data are there for your review.
* When viewing the data, you can optionally load it into Google Earth for a full 3D map of your flight.
Speech:
This is primarily for GRMS or HAM radio attached to phone for non-cell network areas or if your phone is not provisioned.
I also find that it is nice to "hear" it in the Video at apogee.
* For rockets, at launch, altitude, every thousand feet obtained is spoken, skipping as necessary for fast and high ascents.
* At apogee final altitude, velocity, and the amount of revolutions during ascent are spoken.
* At routine intervals, bearing & distance, altitude, GPS location, descent rate, max altitude, max velocity, and your GRMS or HAM call sign are spoken.
Help:
Bay Help - https: //www.insanerocketry.com/help/helpebay.html
App Help - https: //www.insanerocketry.com/help/help.html
Recommended older phones with barometers:
1.
The Nexus 5 only handles 2Gs per axis but it runs cool & the battery will last all day.
2.
The Nexus 4 is one of the few older Android phones that supports 4Gs per axis.
You can find them like new on ebay for around $65.
However, this phone runs hot and the battery will last about 4 hours.
Since the Nexus 4 is a few years old, an excellent condition battery is critical for reliable operation.
If you purchase your "launch phone" on the same carrier as your "main phone", you can put your sim card in it during flight.
Then use a friend's phone to view landing location! You can use an adapter like this to resize your sim card: http: //www.amazon.com/MediaDevil-Simdevil-Adapter-Micro-Standard/dp/B00G26XWDI?ie=UTF8&psc=1&redirect=true&ref_=oh_aui_detailpage_o00_s00
Make sure that you assemble your rocket/payload in the shade to avoid phone overheating.
Try to avoid abrupt knocks of the payload section as those trigger Video record thinking a launch may have occurred (the software automatically identifies these as non-launches), but they can drain more battery, generate heat, and consume recording memory.

Updates:

Fixes:
• Issue with older Android OS v4.4.4 (KitKat) and earlier.
• Bogus identified if barometer not present.
New:
• App idle time uses much less CPU.
This reduces heat (important for summer) and extends charge life.
• BETA: Support for Dual Deployment for USB-C style phones! Contact me if you plan to use this.
• Number of satellites, if available is now recorded.
• GPS Vertical resolution, if available is recorded.
• RevolutionsClock is now recorded refer to Data Help for details.
