ElectricalFilters2

Download this app named ElectricalFilters2.

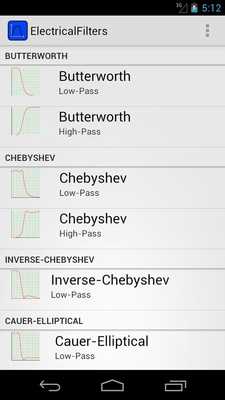

Calculates poles,zeros,polynomial coefficients for:
1) Butterworth (Low-Pass, High-Pass)
2) Chebyshev (Low-Pass, High-Pass)
3) Inverse-Chebyshev (Low-Pass)
4) Cauer-Elliptical (Low-Pass)
5) Bessel-Thomson (Low-Pass)
6) Langrange (Low-Pass)
Plots Magnitude, Phase and Delay responses.
Note: Paid version additional calculates :
1) LowPass, HighPass, BandPass and BandStop Filters for all filter families.
2) Active circuit topology for each section.
3) Step/Impulse responses.
*** The developer takes no responsibility for errors arising from the use of this application.
****

Updates:

Added user specified filter order for Legendre and Bessel filters.





Free download Android ElectricalFilters2 from MyAndroid.net
